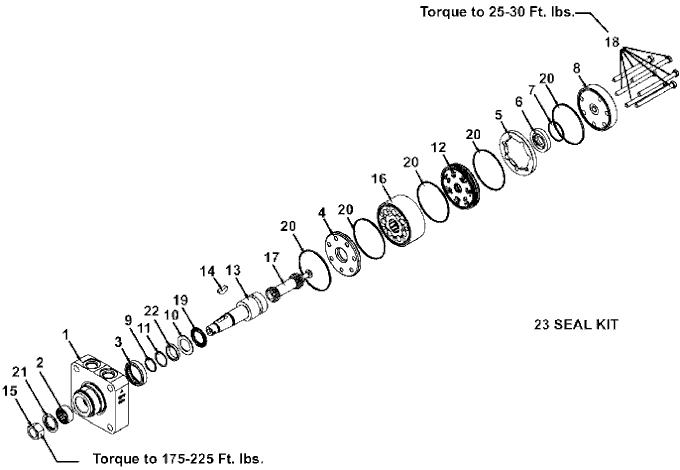

120 • Wheel Motor Breakdown
2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
NOT AVAILABLE |
000000 |
2 |
Outer Bearing |
130368 |
3 |
Inner Bearing |
130336 |
4 |
Wear Plate |
130331 |
5 |
NOT AVAILABLE |
000000 |
6 |
NOT AVAILABLE |
000000 |
7 |
(Hi-Temp) Commutator Seal |
130312 |
8 |
NOT AVAILABLE |
000000 |
9 |
BackUp Ring |
130303 |
10 |
Thrust Washer |
130347 |
11 |
Back Up Washer |
130304 |
12 |
NOT AVAILABLE |
000000 |
13 |
Coupling Shaft |
130307 |
14 |
Woodruff Key |
281845 |
15 |
Lock Nut |
253992 |
16 |
Rotor Set |
130376 |
17 |
Drive Link |
130313 |
18 |
NOT AVAILABLE |
000000 |
19 |
Thrust Bearing |
130348 |
20 |
Section Seal |
130390 |
21 |
Dirt & Water Seal |
130325 |
22 |
Inner Seal |
130339 |
23 |
Seal Kit |
130388 |
