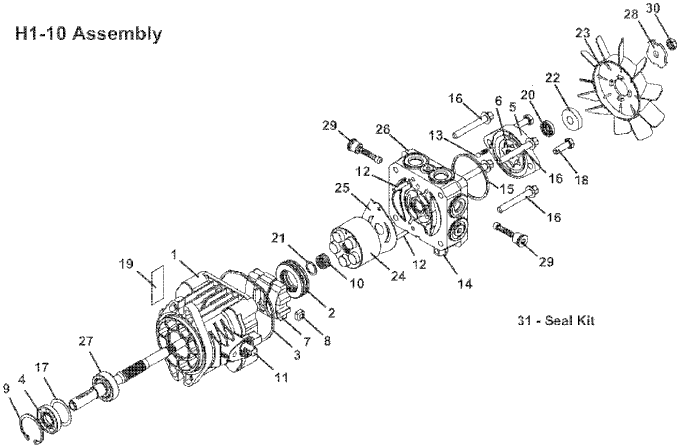

120K • H1 Pump Breakdown

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H1 Housing Assembly

130455

2

H1 Thrust Bearing

130413

3

Seal Ring

130457

4

Input Seal

125366

5

H1 Charge Cover

130423

-

Charge Cover

130422

6

H1 Gerotor Set

130425

7

H1 Swashblock

130415

8

H1 Control Block

130417

9

H1 Input Seal Retaining Ring

130405

10

Spring

130473

11

Trunnion Arm

130419

-

Trunnion Seal

125359

-

Retaining Ring

130402

12

Dowel Pin

130459

13

Charge Relief Kit

130426

14

Bypass Valve

130448

-

Backup Ring

130517

-

O-Ring

130518

15

H1 Charge Cover Seal Ring

130421

-

Charge Cover Seal Ring

130420

16

NOT AVAILABLE

000000

17

H1 Washer

130407

18

NOT AVAILABLE

000000

19

NOT AVAILABLE

000000

20

Thru Shaft Seal

125162

21

Thrust Washer

130479

22

H2 Fan Hub

130430

23

NOT AVAILABLE

000000

24

Shaft & Barrel Assembly

130466

-

Shaft & Barrel Assembly - Thru Shaft

130467

25

Port Plate

130453

26

H1 Left End Block Assembly

130437

-

H1 Right End Block Assembly

130440

27

H1 Shaft Assembly

130475

-

H3 Thru Shaft Assembly

130477

-

H1 Input Bearing

130482

-

H1 Bearing Retain Ring (Wire)

130483

28

Fan Retainer Washer

130432

29

H1 Check Valve Assembly

130443

-

O-Ring

130447

30

Nylon Insert Nut

253461

31

H1 Seal Kit

130401
