Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

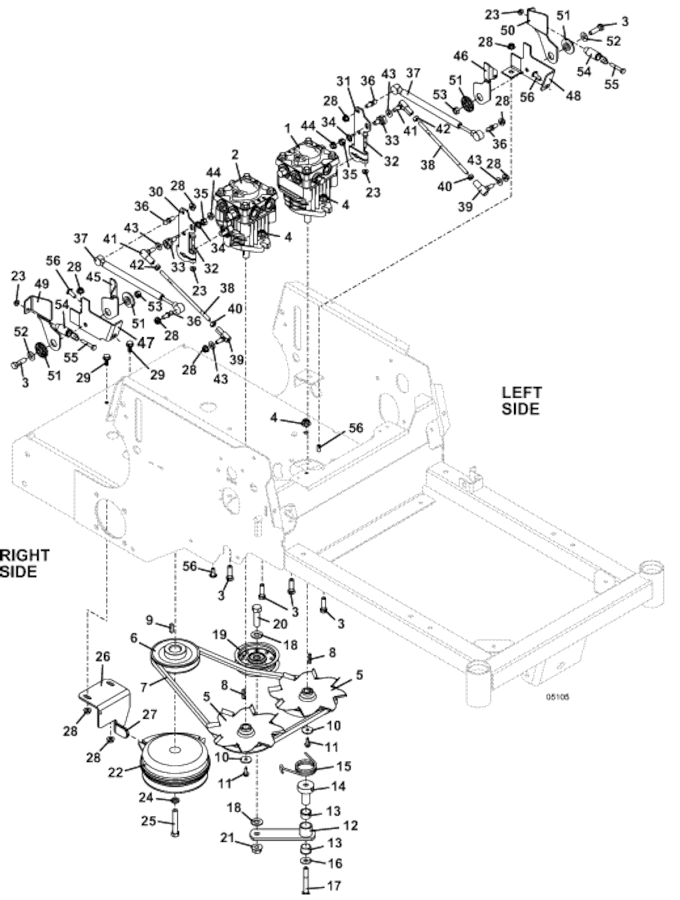

124 • Drive Assembly - M2/41 & M2/48

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H3 Left Hydro Pump

391438

-

H1 left Hydro Pump

391432

2

H3 Right Hydro Pump

391439

-

H1 Right Hydro Pump

391433

3

Hex Bolt

243335

4

Whiz Nut

253043

5

Sheave

415555

6

Sheave

415545

7

Belt

381940

8

Square Key

281560

9

Square Key

281582

10

Flat Washer

774012

11

Hex Bolt

270821

12

100 Pumps Idler Arm Assembly

824478

13

Oilite Bearing

121756

14

Pedestal Bearing

121650

15

Torsion Spring

284426

16

Washer

257040

17

Hex Bolt

243360

18

Washer

257062

19

Idler

393195

20

Hex Bolt

243575

21

Whiz Nut

253066

22

1" Shaft Electric Clutch

388750

23

Whiz Nut

253025

24

Lock Washer

257422

25

Hex Bolt

243470

26

100 Anti Rotation Bracket

725123

27

Clutch Bracket Cover

422088

28

Whiz Nut

253035

29

Hex Flange Whiz Bolt

253192

30

M2 right Control Arm

754258

31

M2 left Control Arm

754259

32

Hex Whiz Bolt

253182

33

Eccentric Roller Assembly

603726

34

External Star Washer

257410

35

Nut

254450

36

Ball Stud

265680

37

Damper

285031

38

left/right Steering Linkage

780169

39

Righthand Thread Ball Joint

265615

40

Nut

254441

41

Lefthand Thread Ball Joint

265616

42

Nut

254444

43

Washer

257020

44

Whiz Nut

253038

45

Neutral Return Arm

729398

46

Front left Neutral Return Arm

729399

47

M2 right Neutral Return Mount

754246

48

M2 left Neutral Return Mount

754247

49

right rear Neutral Return Arm

729396

50

left rear Neutral Return Arm

729397

51

Neutral Return Pivot Bearing

822304

52

Washer

257030

53

Lock Nut

253890

54

Extension Spring

283823

55

Hex Bolt

243035

56

Whiz Truss Bolt

253190

Return to 124 Index Return to Top
