Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

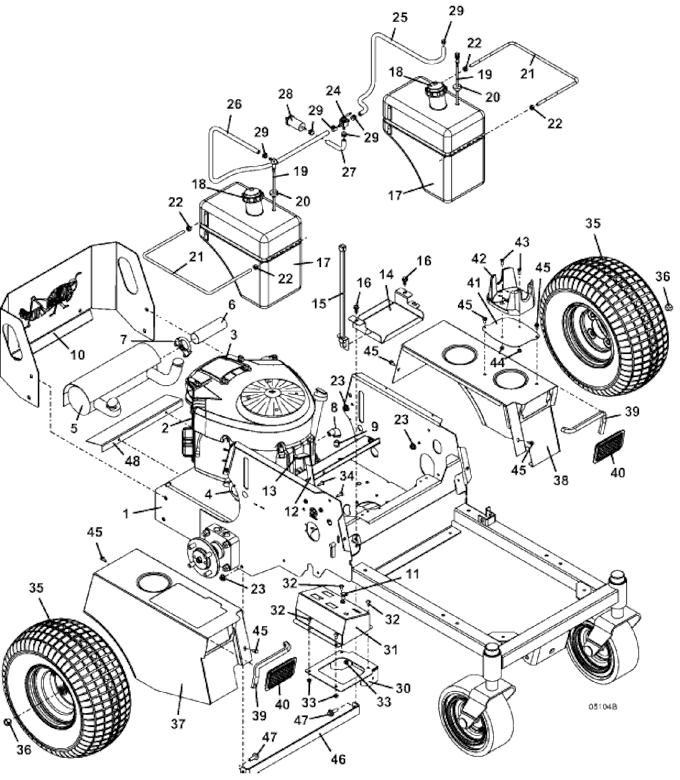

124 • Tractor Assembly - M2/41 & M2/48

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M248 Frame

644408

-

M241 Frame

644389

2

24hp Briggs & Stratton ELS Vertical Engine

100151

3

Briggs & Stratton Air Filter with Pre-Cleaner

100918

4

Briggs Oil Filter

100803

5

Muffler for 20/24 hp Briggs & Stratton Vertical Engine

101196

6

M2 Exhaust Pipe

942400

7

Exhaust Clamp

101356

8

Street Ell

363515

9

3/8" Metal Pipe Plug

365515

10

M2 Rear Shield

724674

11

Mechanical Choke

142242

12

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

13

Handle Grip

422150

14

Battery Box

723230

15

Battery Hold Down Strap

604785

16

Hex Flange Whiz Bolt

253192

17

M2 3-Gallon Tank Assembly

604807

18

Fuel Cap

100210

19

Fuel Tube

363925

20

Grommet

101875

21

100 Gas Tank Mount Rod

730451

22

Nut

254450

23

Whiz Nut

253043

24

Fuel Reserve Single Valve

143641

25

Hose

821749

26

Fuel Hose

821739

27

Fuel Hose

821710

28

Briggs In-Line Fuel Filter

366560

29

Spring Hose Clamp

280260

30

100 Console Bracket

644410

31

M2 Console

644405

32

Truss Whiz Bolt

253176

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

4-Bolt Wheel & Turf Tire 18 x 9.5 x 8

483906

-

Turf Tire 18 x 9.5 x 8

482453

-

Knobby Tire 18 x 9.5 x 8

482457

-

Pathfinder Bar Tread Tire 18 x 9.5 x 8

482458

-

4-Bolt Wheel 8 x 6.25

483399

-

4-Bolt Wheel & Knobby Tire 18 x 9.5 x 8

483907

-

right Wheel & Pathfinder Bar Tread Tire 18 x 9.5 x 8

483908

-

left Wheel & Pathfinder Bar Tread Tire 18 x 9.5 x 8

483909

36

Lug Nut

254472

37

Right 100 Fender

644393

-

Right 124 Trim Decal

163384

38

Left 100 Fender

644394

-

Left 124 Trim Decal

163385

39

Seat Edge Trim

822630

40

Work Lamp Hole Plug

422079

41

M2 Reservoir Access Panel

722804

42

Cup Holder

150225

43

Cap Screw

259030

44

Nut

254436

45

Hex Whiz Bolt

253173

46

M2 120 Tension Strap

732514

47

Flange Whiz Bolt

253203

48

120 Heat Shield

722974

49

Decal Set - 124

605325

50

Decal Set - 124/48

605326
