Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

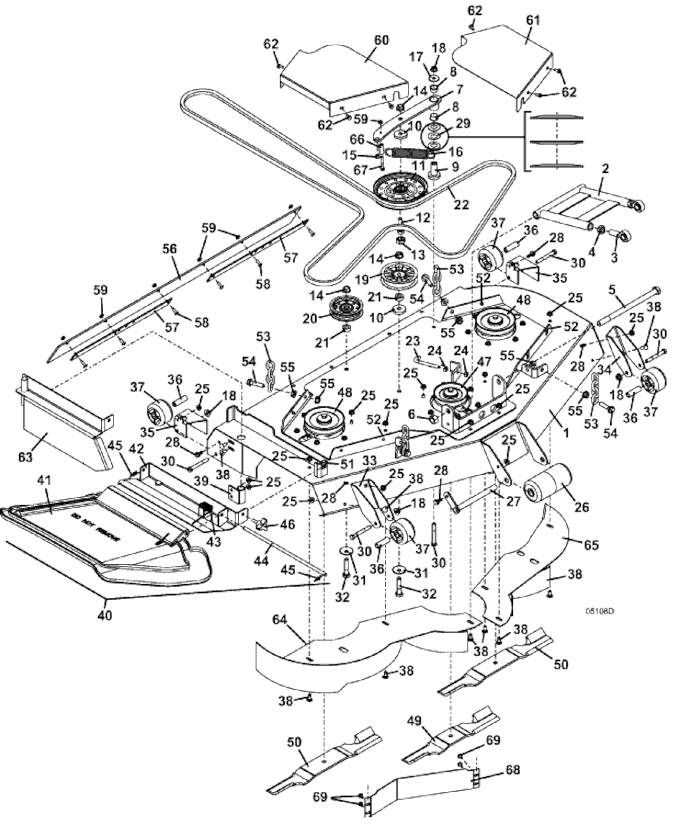

124 • Deck Assembly M248

2011

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M2/48 Deck Weldment

644413

2

M248 Radius Arm Assembly

604670

3

Rod End

265665

4

Nut

254493

5

Hex Bolt

243910

6

Lock Nut

253970

7

100/41 & 100/48 M148 Idler Arm Assembly

824483

8

Oilite Bearing

121756

9

Pedestal Bearing

121651

10

Washer

883804

11

Idler

393250

12

Hex Bolt

243575

13

Idler Arm Stabilizer Cap

423670

14

Flange Spiral Lock Nut

253067

15

Nylon Bearing

422520

16

Extension Spring

283824

17

Washer

774020

18

Whiz Nut

253043

19

Idler

393225

20

Idler

393195

21

Spacer

902313

22

Belt

382084

23

Idler Adjustment J Bolt

730391

24

Nut

254450

25

Whiz Nut

253035

26

2-Piece Center Roller Assembly

603725

27

Roller Lock Pin

644512

28

Hex Flange Whiz Bolt

253192

29

Spring Washer

257319

30

Hex Bolt

243365

31

Washer

257059

32

Hex Bolt

243590

33

M1/M248 right Formed Roller Mount

754203

34

M1/M248 left Formed Roller Mount

754204

35

M148 Rear Roller Mount

755006

36

Roller Mount Spacer

902284

37

Roller

426122

38

Carriage Bolt

247130

39

Vac Housing Pivot Mount

643632

40

3344/48 Flex Discharge Shield Assembly

604318

41

Flex Discharge Shield

422042

42

Discharge Shield Mount

644567

43

Torsion Spring

284406

44

Flex Discharge Shield Pin

780650

45

Cotter Ring

260608

46

3-Prong Head Deck Stud (Knob)

252821

47

Sheave

415870

48

Big Split Sheave

415902

49

15" High Lift Notch Blade

320234

-

15" Medium Lift Blade

320231

-

15" Contour Blade

320233

-

15" Hi-Low Mulch Blade

320235

-

15" Extreme Hi-Lift Blade

320248

50

18" High Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" Hi-Low Mulch Blade

320240

-

18" Extreme Hi-Lift Blade

320241

-

18" Hi-Lift Notch Laser Edge Blade

320317

-

18" Shredder Blade

320321

51

Speed Nut

254448

52

Speed Nut

254431

53

4 Link Chain

820332

54

GR 8 Hex Bolt

243458

55

Whiz Nut

253058

56

M148 Deck Flap

424179

57

right Deflector Strap

774219

58

Phillips Truss Whiz Bolt

253179

59

Whiz Nut

253025

60

M2/48 right Belt Shield

722827

61

M2/48 left Belt Shield

722828

62

Hex Whiz Bolt

253175

63

3344/48 Mulch End Cap

644175

64

3348 right Mulch Plate

644603

65

3348 left Mulch Plate

644604

66

Guide Tube

784057

67

Hex Bolt

243038

68

Auxiliary Front Shroud - 48

724518

69

Truss Whiz Bolt

253176
