Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

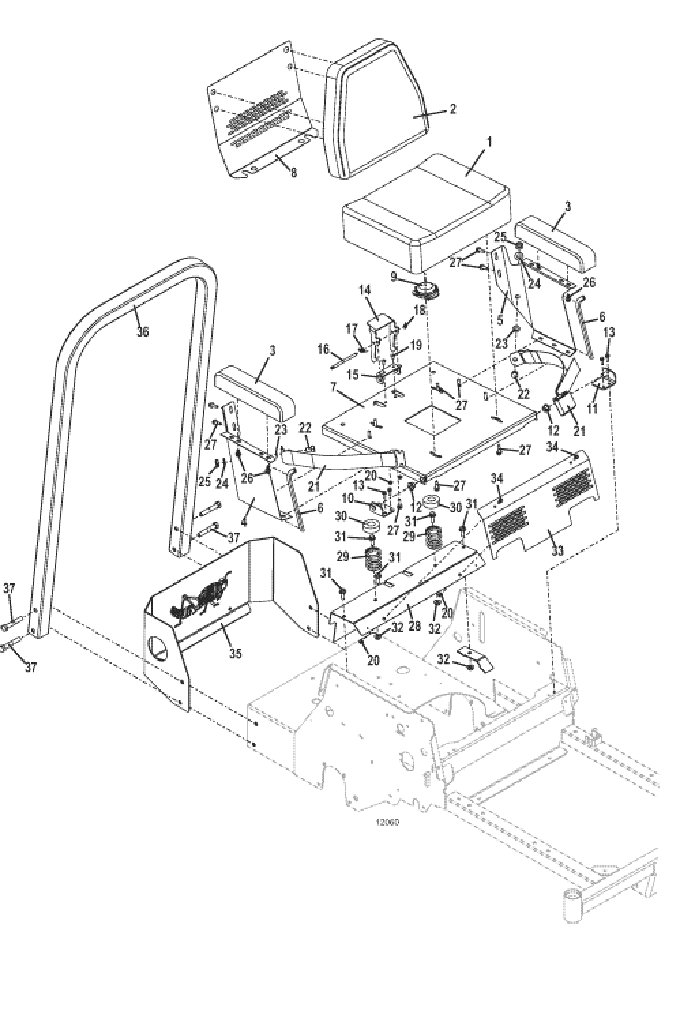

126 • Seat Assembly & OPS Tube

2014

seat and steering assemblies

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cordura Seat Cushion

321518

2

Cordura Back Cushion

321519

3

Cordura Contoured Armrest

321523

4

Right Raised Backrest Seat Side

723433

5

Left Raised Backrest Seat Side

723434

6

Seat Edge Trim

822630

7

200V Seat Pan

643898

8

Raised Backrest Seat Reinforcement

722884

-

Medium Grasshopper® Red/White Decal

163295

9

Twist-In Seat Switch

183871

10

Seat Pivot Bracket

644401

11

Seat Pivot Bracket

644402

12

Sleeve Bearing with Flange

422565

13

Hex Whiz Bolt

253175

14

200V Seat Latch

724930

15

200V Seat Latch Bracket

724929

16

Seat Latch Pivot Pin

730229

17

Torsion Spring

284408

18

Cotter Ring

260606

19

Whiz Truss Bolt

253176

20

Whiz Nut

253025

21

Non-retractable Seat Belt

324200

22

Hex Bolt

243551

23

Washer

257063

24

Washer

257062

25

Nylon Insert Nut

253470

26

Flanged Hex Whiz Bolt

253191

27

Flanged Hex Whiz Bolt

253193

28

Seat Crossmember

729736

29

Compression Spring

283516

30

Seat Spring Cap

422127

31

Flanged Whiz Bolt

253203

32

Whiz Nut

253043

33

Fan Shield

751042

34

Hex Whiz Bolt

253173

35

Rear Guard Shield

729734

36

100 Series OPS Tube

324111

-

OPS Warning Decal

165092

37

Hex Bolt

243600

-

Lock Nut

253930
