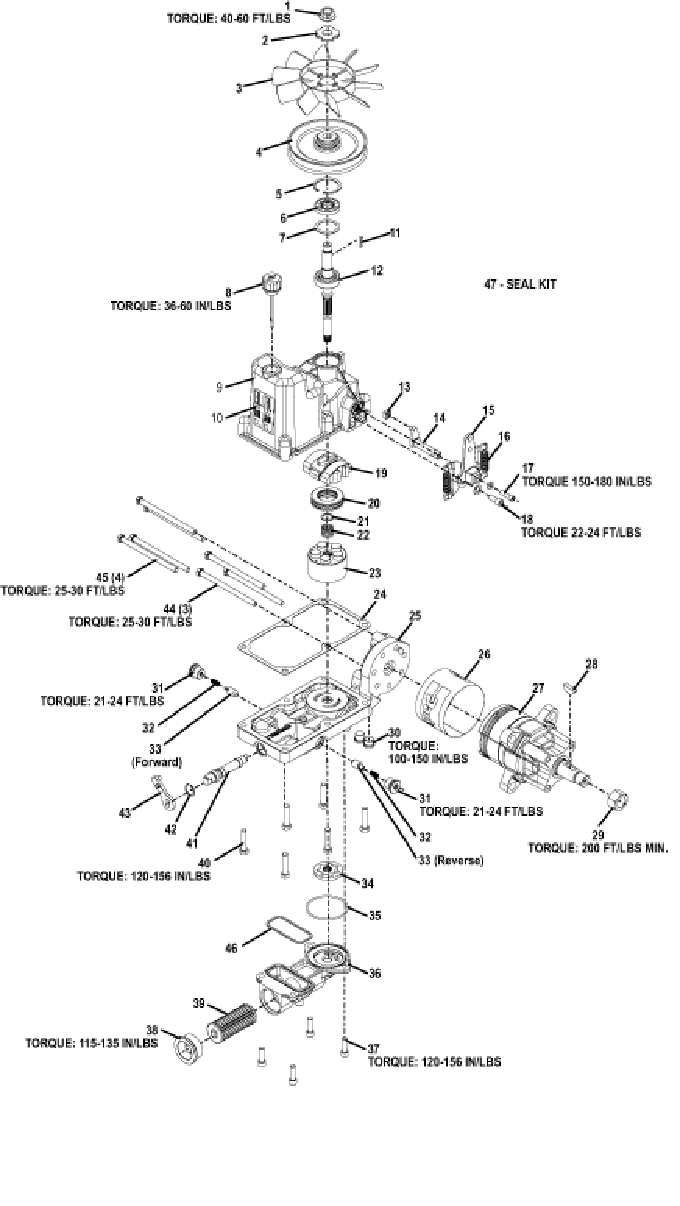

126 • HTE Drive Assembly

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Flanged Nut

253070

2

Fan Spacer

130632

3

Hydro Fan

130431

4

Pulley

130630

5

Input Seal Retaining Ring

130405

6

Input Seal

125365

7

Washer

130407

8

Breather/Dipstick

130610

-

Seal Ring

130611

9

Left Top Housing

130660

9

Right Top Housing

130661

10

NOT AVAILABLE

000000

11

Square Key

281668

12

Shaft Assembly

130676

13

Control Block

130417

14

Trunnion Arm

130617

15

Control Lever

130618

16

Return Spring

130619

17

NOT AVAILABLE

000000

18

NOT AVAILABLE

000000

19

Swashblock

130415

20

Thrust Bearing

130413

21

Thrust Washer

130479

22

Spring

130473

23

Piston & Barrel Assembly

130452

24

Housing Gasket

130680

25

NOT AVAILABLE

000000

26

NOT AVAILABLE

000000

27

NOT AVAILABLE

000000

28

Woodruff Key

281845

29

Lock Nut

253992

30

NOT AVAILABLE

000000

31

NOT AVAILABLE

000000

-

O-Ring

126538

32

NOT AVAILABLE

000000

33

NOT AVAILABLE

000000

34

Gerotor Set

130428

35

Charge Cover O-Ring

130620

36

Charge Pump Cover

130622

37

NOT AVAILABLE

000000

38

Filter Plug with O-Ring

130606

-

O-Ring

126552

39

Filter

130605

40

NOT AVAILABLE

000000

41

Bypass Valve Assembly

130647

-

O-Ring

126531

42

Retaining Ring

130649

43

Bypass Lever Kit

130648

44

NOT AVAILABLE

000000

45

NOT AVAILABLE

000000

46

O-Ring

130621

47

HTE Seal Kit

130600

Return to 126 Index Return to Top
