Genuine OEM Grasshopper Lawn Mower Parts

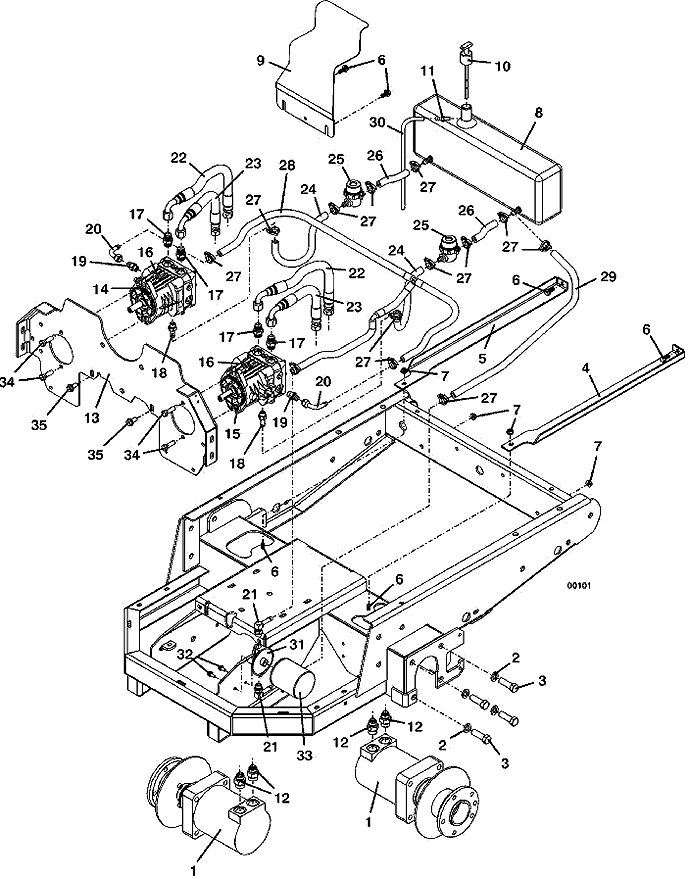

Genuine OEM Grasshopper® Mower Parts Diagrams

225 • Reservoir & Hose Assembly - late
serial numbers 5113811 - 5199999

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603595

2

Lock Washer

257442

3

Hex Bolt .562-18 x 1.75 GR 5

243770

4

Tank Rail - right

754051

5

Tank Rail - left

754052

6

Hex Flange Whiz Bolt .312-18 x .75 GR 5

253192

7

Whiz Nut

253035

8

Oil Reservoir Assembly - M1

603587

-

Barbed Fitting - 90 degree

363837

-

Barbed Fitting

363836

-

Fuel Tube Bushing

101875

9

Oil / Fuel Tank Anchor

723159

10

Oil Reservoir Dipstick - M1

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360063

-

O Ring

126537

13

Pump Plate - 200

644634

14

Hydro Pump with Shaft - left

391460

15

Hydro Pump with Shaft - right

391461

16

Whiz Nut .375-16

253043

17

Adapter Fitting

360059

-

O Ring

126537

-

O Ring

126535

18

O Ring Boss Fitting

363864

19

Adapter

360057

20

Fitting

363846

21

Adapter

360056

22

Hose Assembly

424361

23

Tube Assembly

424362

24

Hydraulic Hose

821772

25

In-Line Strainer

366551

26

Hydraulic Hose

821778

27

Spring Hose Clamp .375

280263

28

Hose Assembly

424318

29

Hydraulic Hose

821789

30

Clear Vent Hose

821724

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt .250-20 x .500

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt .375-16 x 1.25

243335

36

Flange Whiz Bolt .375-16 x 1

253203

Return to 220/225 Index Return to Top
