Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

220 • Pump Assembly

2002

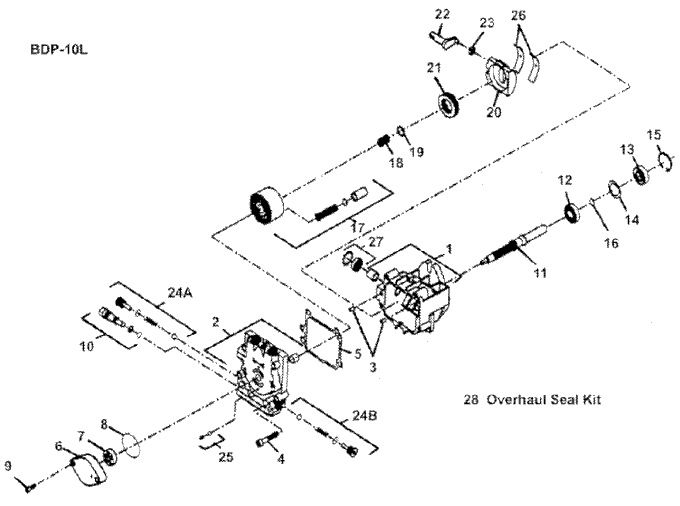

Pump Breakdown

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Kit

130050

2

End cap Kit

130041

3

Dowel Pin

130046

4

M8 Socket Head Screw

270080

5

End Cap Gasket

130038

6

Charge Cover

130023

7

Gerotor Assembly

130061

8

Charge Cover O-Ring

130021

9

M6 Socket Head Screw

270824

10

Bypass Valve (NOT AVAILABLE)

000000

-

Bypass Valve Backup Ring

130017

9

Bypass Valve O-Ring

130018

11

Shaft kit

130179

12

Ball Bearing

130081

13

Input Seal

125364

14

Input Seal Spacer

130085

15

Retaining Ring

130089

16

Input Bearing Retaining Ring

130165

17

Block Kit

130151

18

Block Spring

130014

19

Block Thrust Washer

130218

20

Swashplate

130182

21

Thrust Bearing

130013

22

Trunnion Arm

130036

23

Guide Block

130065

24

Check Valve Assembly - NOT AVAILABLE

000000

-

Check Plug

130030

-

Check Plug O-Ring

130031

-

Poppet

130155

-

Poppet Spring

130157

25

Charge Relief Kit

130025

26

Cradle Bearing - NOT AVAILABLE

000000

27

Trunnion Seal Kit

125355

-

Trunnion Seal Retaining Ring

130029

28

Seal Kit

130176
