Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

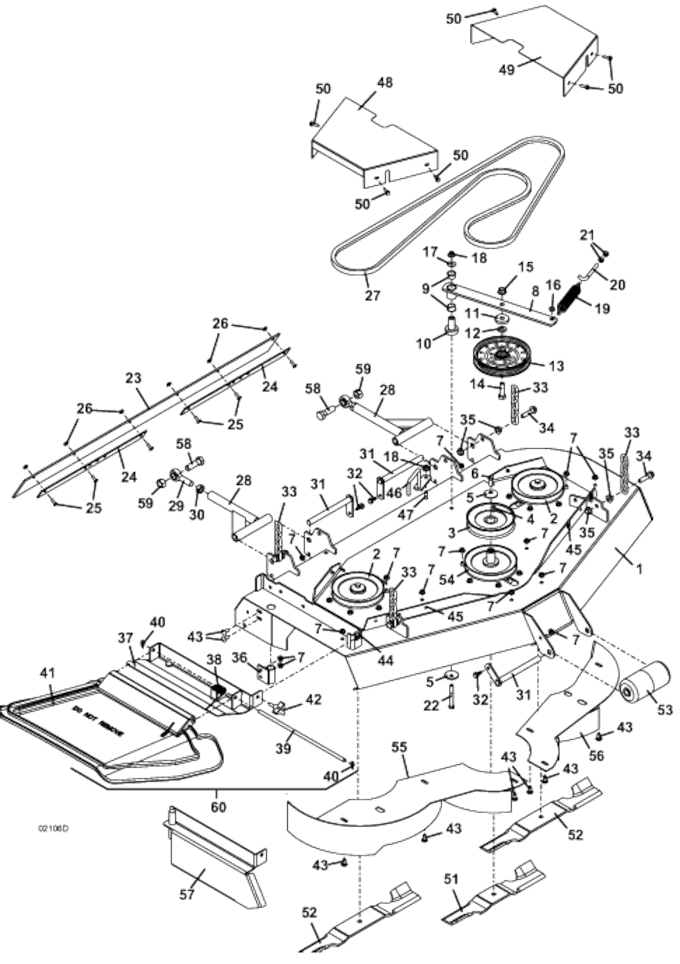

220 • Deck Assembly M148

2007

Deck Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M148 200 Series Deck Weldment

644171

2

Sheave

415892

3

Split Sheave

415891

4

Square Key

281582

5

Cupped Washer

257041

6

Hex Bolt

243331

7

Whiz Nut

253035

8

M148 Idler Arm w/Pedestal

824492

9

Oilite Bearing

121756

10

Pedestal Bearing

121650

11

Washer

883804

12

Washer

257062

13

Idler

393250

14

Hex Bolt

243575

15

Spiral Flange Lock Nut

253067

16

Nylon Bearing

422520

17

Washer

257040

18

Whiz Nut

253043

19

Extension Spring

283848

20

Idler Adjustment J Bolt

730391

21

Nut

254450

22

Hex Bolt

243365

23

M148 Deck Flap

424179

24

Right Deflector Strap

774219

25

Truss Whiz Bolt

253177

26

Whiz Nut

253025

27

Belt

382086

28

Radius Arm Assembly

604675

29

Rod End

265665

30

Nut

254493

31

Roller Lock Pin

644512

32

Hex Whiz Flange Bolt

253192

33

M1 5 Links Chain

820331

34

GR 8 Hex Bolt

243458

35

Whiz Nut

253058

36

Vac Housing Pivot Mount

643632

37

33S Discharge Shield Mount

644567

38

Torsion Spring

284406

39

Discharge Shield Flex Pin

780650

40

Cotter Ring

260608

41

Flex Discharge Shield

422042

42

3 Prong Deck Screw

252821

43

Carriage Bolt

247130

44

Speed Nut

254448

45

Speed Nut

254431

46

M1 Deck Belt Guide

644086

47

Flange Whiz Bolt

253203

48

M148 200 Right Belt Shield

722541

49

M148 200 Left Belt Shield

722542

50

Hex Whiz Bolt

253175

51

15" Hi-Lift Notch Blade

320234

-

15" Medium Lift Blade

320231

-

15" Contour Blade

320233

-

15" Hi-Low Mulch Blade

320235

-

15" Extreme Hi-Lift Blade

320248

52

18" High Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" High-Low Mulch Blade

320240

-

18" Extreme High Lift Blade

320241

-

18" Laser Edge High Lift Notch Blade

320317

-

18" Shredder Blade

320321

53

2 Piece Center Roller Assembly

603725

54

Big Split Sheave

415902

55

3348 Right Mulch Plate

644603

56

3348 Left Mulch Plate

644604

57

3344/48 Mulch End Cap

644175

58

Hex Bolt

243810

59

Lock Nut

253970

60

3344/48 Flex Discharge Shield Assembly

604318
