Genuine OEM Grasshopper® Mower Parts Diagrams

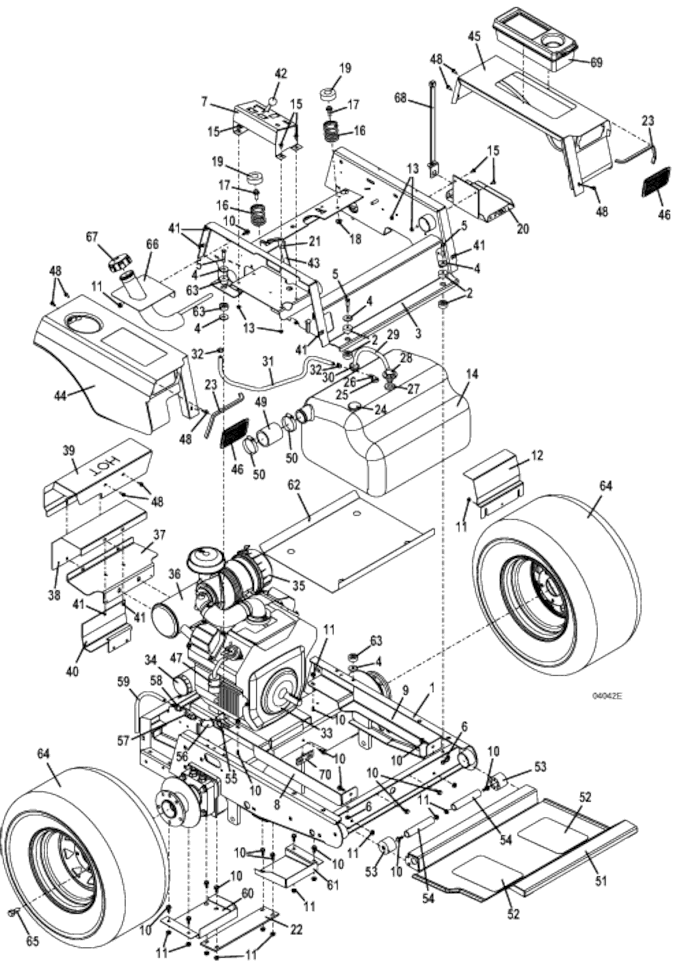

220 • Tractor Assembly

2010-5

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 200 Front Port Frame

644280

2

Step Bushing

257037

3

200/300B Upper Frame

644889

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

200 Console Panel w/Decal

693115

8

Right Tank Rail

645800

9

Left Tank Rail

645801

10

Hex Flange Whiz Bolt

253192

11

Whiz Nut

253035

12

Gas Tank Anchor

722948

13

Whiz Nut

253025

14

M1 .312 Gas Tank Assembly

605799

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Flange Whiz Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

220/225/227 Battery Box

644090

21

Handle Grip

422150

22

Belt Guard Strap

783277

23

Trim

822632

24

Intank Fuel Gauge

141142

-

Grommet

424275

25

Fuel Tube Bushing

101875

26

Fuel Tube

363925

27

Fuel Tank Valve Bushing

101874

28

Fuel Tank Valve

100215

29

Fuel Hose

821736

30

In-Line Filter

366562

31

Fuel Hose

821736

32

Hose Spring Clamp

280260

33

200HP M1 HD AC Kohler Engine

100163

34

Kohler Oil Filter

100802

35

HD Outer Air Filter

100936

-

HD Inner Air Filter

100937

36

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

37

225 Lower Muffler Bracket

729312

38

Inner Panel Shield

722309

39

Muffler Shield

722391

40

Shield Mount Bracket Assembly

605125

41

Speed Nut

254431

42

Mechanical Choke

142214

43

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Stop Lever

722009

44

200 Right Fender w/Decals

693228

45

200 Left Fender w/Decals

693229

46

Work Lamp Hole Plug

422079

47

Kohler Fuel Filter

101001

48

Hex Whiz Bolt

253173

49

Fuel Tank Filler Hose

422027

50

Screw Type Hose Clamp

280305

51

M1 On-Frame Foot Rest

644256

52

Foot Rest Tread

420902

53

Seat Isolator

424095

54

Seat Hinge Pin

644618

55

Nipple

364508

56

ELL

362215

57

Oil Drain Valve

143610

58

Nylon Fitting

363854

59

Oil Drain Tube

821752

60

200 Right Hydro Debris Shield

723024

61

200 Left Hydro Debris Shield

723025

62

M1 Fuel Tank Shield

722949

63

Step Bushing

257038

64

Wheel & Turf Tire

483955

-

23x9.5x12 Turf Tire

482488

-

Wheel

483435

65

Lug Bolt

248565

66

Fuel Filler

644886

67

External Sealed Tether Fuel Cap

100213

68

Hold Down Battery Strap

604785

69

Tool Box

422040

70

M1 Deck Belt - Belt Guide

645005

71

220 Decal Set

605520

Return to 220 Index Return to Top
