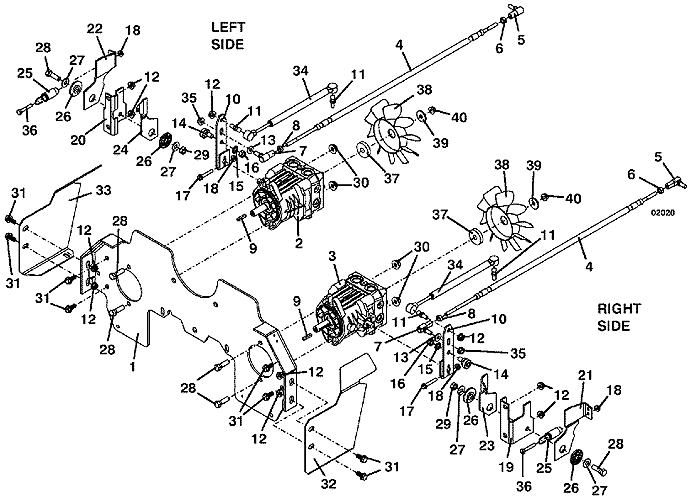

223 / 227 • Drive Assembly - diagram 2

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate with Fans - 200

644634

2

Hydro Pump with Shaft - left

391460

3

Hydro Pump with Shaft - right

391461

4

Steering Linkage - M1 200

604525

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key .187 x 1

281560

10

Pump Control Arm - 10A

754094

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

Neutral Return Mount - right 321 10A

754072

20

Neutral Return Mount - left 321 10A

754073

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Whiz Nut .375-16

253043

31

Hex Flange Whiz Bolt .312-18 x .75

253192

32

right Pump Plate Shield 225

754103

33

left Pump Plate Shield 225

754104

34

Damper

285031

35

Whiz Nut .312-24

253038

36

Hex Bolt .250-20 x 1.500

243035

37

Fan Mount Hub 10A

885123

38

7" Nylon Fan

320857

39

Retainer Washer

774015

40

Whiz Nut .312-24

253038
