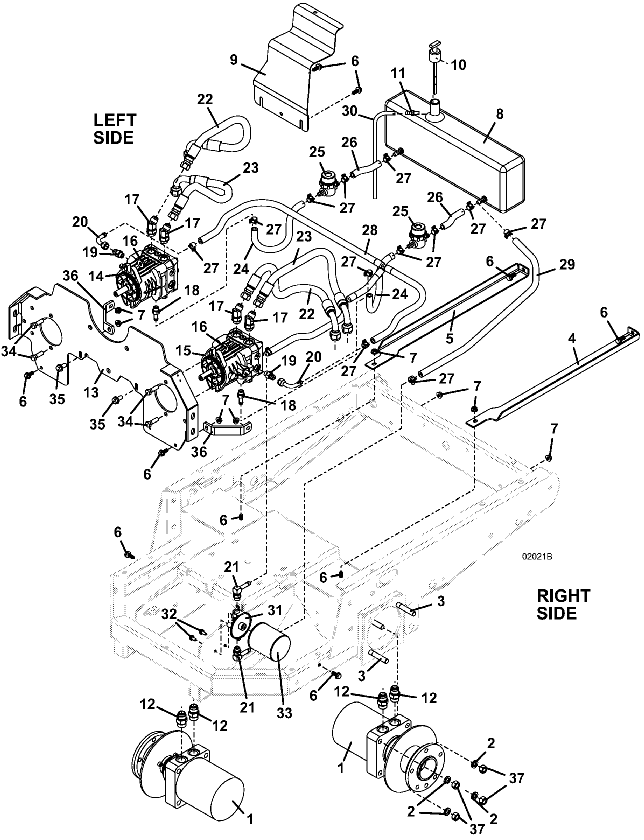

223 / 227 • Reservoir & Hose Assembly

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603603

2

Lock Washer

257432

3

Pin Head Bolt Assembly

604160

4

right Tank Rail

754051

5

left Tank Rail

754052

6

Hex Flange Whiz Bolt .312-18 x .75 GR 5

253192

7

Whiz Nut

253035

8

Oil Reservoir Assembly - M1

603587

-

Fuel Tube Bushing (Grommet)

101875

-

Straight Fitting

363637

-

90 degree Fitting

363638

9

Oil / Fuel Tank Anchor

723159

10

Oil Reservoir Dipstick - M1

100728

11

Straight Barbed Fitting

363826

12

Adapter O Ring

360069

-

O Ring

126529

-

O Ring

126537

13

Pump Plate with Fans - 200

644634

14

Hydro Pump with Shaft - left

391460

15

Hydro Pump with Shaft - right

391461

16

Whiz Nut .375-16

253043

17

Adapter Fitting

360046

-

O Ring

126527

-

O Ring

126535

18

Steel O Ring Boss Fitting

363864

19

Adapter

360057

20

Fitting

363846

21

Beaded Swivel Adapter, 90 degree

360056

22

Hose Assembly

424350

23

Hose Assembly

424351

24

Hydraulic Hose

821782

25

In-Line Strainer

366551

26

Hydraulic Hose

821778

27

Spring Hose Clamp .375

280264

28

Hose Assembly

424318

29

Hydraulic Hose

821789

30

Clear Vent Hose

821724

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt .250-20 x .500

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt .375-16 x 1.25

243335

35

Flange Whiz Bolt .375-16 x 1

253203

36

Pump Plate Rein Strap

732882

37

Nut

254470
