Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

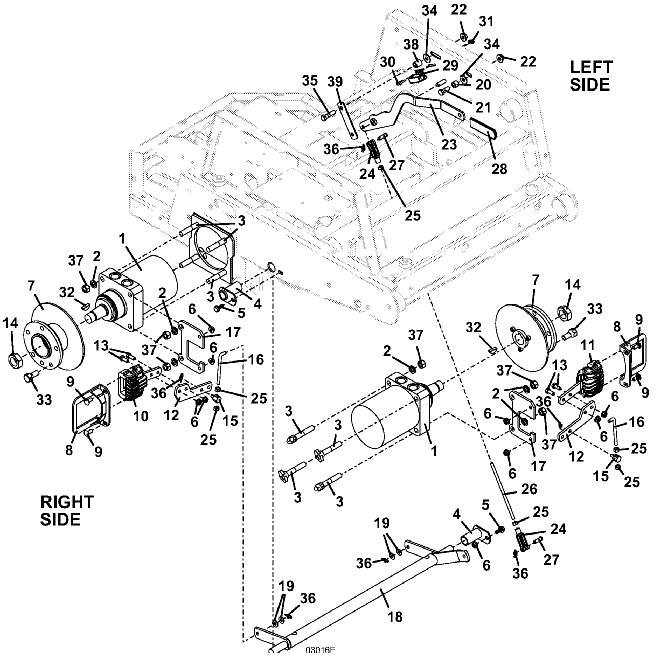

223 / 227 • Wheel Motor & Brake Assembly

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603603

2

Lock Washer

257432

3

Wheel Motor Diamond Head Bolt

243597

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Brake Rotor - 8.0

775192

-

Socket Head Screw

259592

8

Caliper Mount

644121

9

Carriage Bolt .312 x .75

247130

10

Caliper Brake Assembly- counterclockwise

481103

-

Brake Pad Kit

603150

11

Caliper Brake Assembly- clockwise

481102

-

Brake Pad Kit

603150

12

Brake Caliper Arm M1

776056

13

Whiz Bolt .312-18 x .500

243195

14

Nut

254522

15

Brake Linkage Pin

880926

16

928 Brake Linkage Rod

730158

17

Brake Mount- 7.75 Rotor

776174

18

Brake Tube 200/300B

644172

19

Washer

257032

20

Spacer

902280

21

Hex Bolt .375-16 x 1

243330

22

Whiz Nut .375-16

253043

23

Brake Lever - M1

644447

24

Clevis Yoke

265537

25

Nut .312-24

254441

26

Linkage Rod

780157

27

Clevis Pin .312 x 1

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut 10-24

253020

32

Woodruff Key .312 x 1

281860

33

Lug Bolt .500 x .875

248565

34

Washer

257040

35

Hex Bolt

243340

36

Cotter Ring

260606

37

Nut

254470

38

Spacer

902283

39

Reinforcement Pin M1

774145
