Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

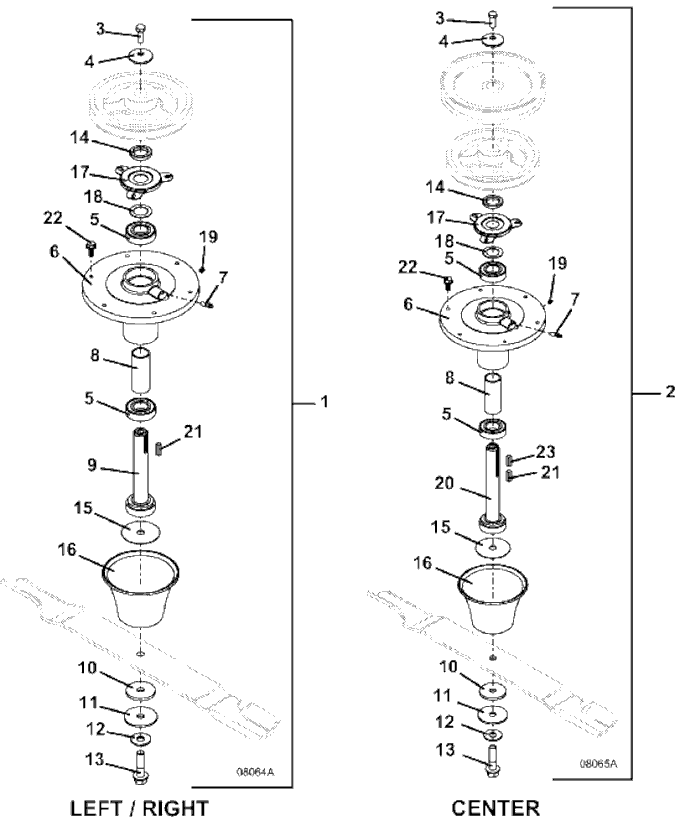

223 / 227 • Blade Spindle Assembly - M172

2011

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 Lt/Rt Blade Spindle Assembly

623764

2

M172 Center Blade Spindle Assembly

623765

3

Hex Bolt .375-24 x 1

243331

4

Cupped Washer

257041

5

25mm 2 Reg Seal Ball Bearing

110081

6

Cast Spindle Housing Assembly

604414

7

Grease Fitting (Zerk)

280745

8

Deep Spindle Bearing Spacer

903643

9

Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Grade 8 Flange Hex Bolt

243583

14

Spacer

282607

15

Washer

772061

16

Deflector Cone

423680

17

Bearing Shield

721167

18

Washer

257104

19

Relief Plug

280705

20

M1 Spindle Shaft Assembly

604773

21

Square Key

281583

22

Flange Whiz Hex Bolt

253192

23

Square Key

281582

Return to 223/227 Index Return to Top
