Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

225 • M148 Deck

2021

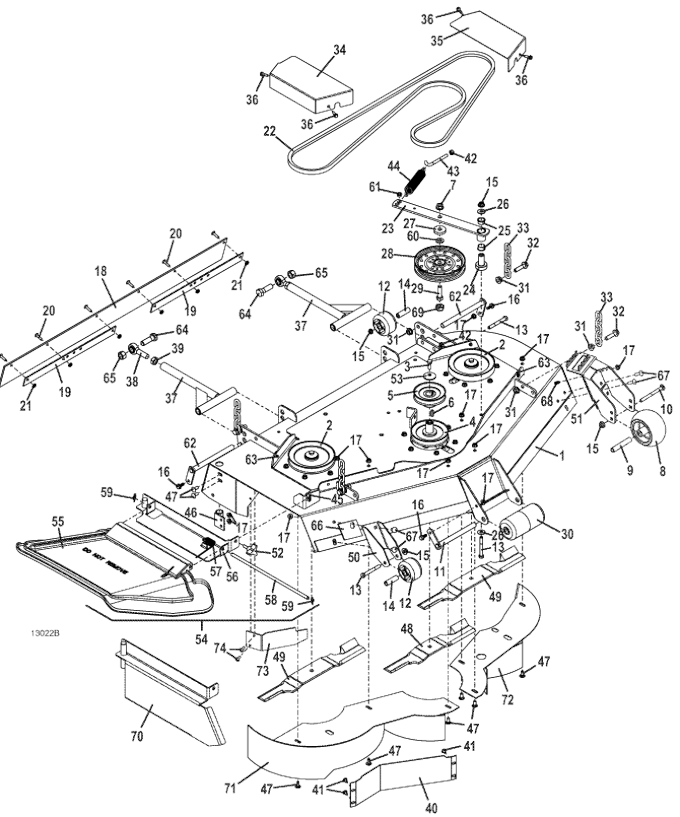

48 Inch Deck Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M148D Deck

645155

2

Sheave

415892

3

Hex Bolt .375-24 x 1

243331

4

Big Split Sheave

415902

5

Split Sheave

415891

6

Square Key

281582

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller 3 x 2"

426122

13

Hex Bolt .375-16 x 3

243365

14

Roller Mount Spacer

902284

15

Whiz Nut .375-16

253043

16

Hex Flange Whiz Bolt .312-18 x .75

253192

17

Whiz Nut

253035

18

M148 Deck Flap

424179

19

RT Deflector Strap

774219

20

Bolt

253181

21

Whiz Nut .250-20

253035

22

48" Deck Belt

382086

23

M1 52/61 Idler Arm with Bearings (includes item 24)

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Oilite Bearing

121756

26

Washer

257040

27

Washer

257160

28

Idler

393250

29

Hex Bolt

243575

30

Center 2-Piece Roller Assembly

603725

31

Whiz Nut .437-14

253058

32

Flange Bolt .437-14 x 1.75 GR 8

243458

33

Chain - 5 Links M1

820331

34

Right Belt Shield M1/48-D

722938

35

Left Belt Shield M1/48-D

722939

36

Hex Bolt .25-20 x .75

253175

37

Radius Arm Assembly

604668

38

Rod End

265665

39

Nut .625-18

254493

40

Auxiliary Front Shroud

724588

41

Truss Whiz Bolt

253176

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speed Nut

254448

46

Pivot Vac Housing Mount

643632

47

Carriage Bolt .312 x .75

247130

48

High Lift Notch Blade - 15"

320234

-

Medium Lift Blade - 15"

320231

-

Contour Blade - 15"

320233

-

High-Low Mulch Blade - 15"

320235

-

Extreme High Lift Blade - 15"

320248

49

High Lift Notch Blade - 18"

320239

-

Medium Lift Blade - 18"

320236

-

Contour Blade - 18"

320238

-

High-Low Mulch Blade

320240

-

Extreme High Lift Blade - 18"

320241

-

High Lift Notch Laser Edge Blade - 18"

320317

-

Shredder Blade - 18"

320321

50

Right Formed Roller Mount - M1/M248

754203

51

Left Anti-Scalp Roller Mount

645589

52

3-Prong HD Deck Stud

252821

53

Cupped Washer

257041

54

Flex Discharge Shield Assembly

604317

55

Flex Discharge Shield

422042

56

Discharge Shield Mount

644570

57

Torsion Spring

284406

58

Pin for Flex Discharge Shield

780650

59

Cotter Ring

260608

60

Washer

257062

61

Nylon Bearing

422520

62

9772 Radius Arm Pin

644636

63

Speed Nut

254431

64

Hex Bolt

243810

65

Lock Nut

253970

66

Roller Spacer

776231

67

Carriage Bolt

247135

68

Flange Whiz Hex Bolt

253193

69

Idler Arm Stabilizer Cap

423670

70

Mulch End Cap

644058

71

Right Mulch Plate - M1/48-D

645600

72

Left Mulch Plate - M1/48-D

645601

73

Dishchage Deflect Shroud

729686

74

Truss Whiz Bolt

253177
