Genuine OEM Grasshopper® Mower Parts Diagrams

226V • Electrical Wiring & Lights

2014

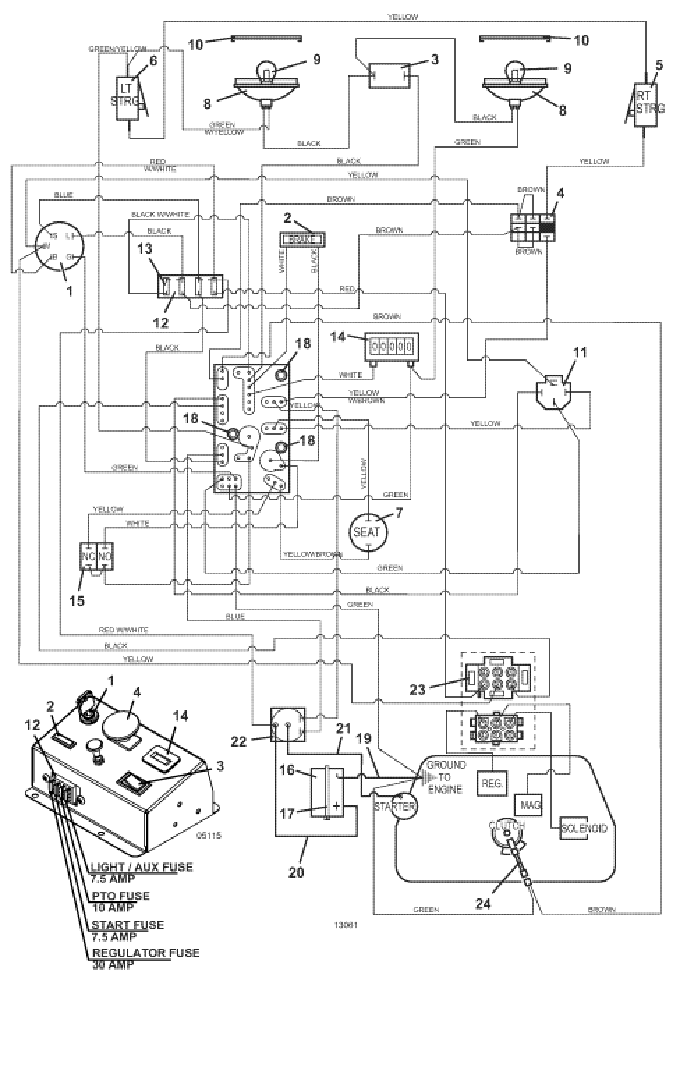

wiring schemtic

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Nut

254498

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

Flood Worklamp

182253

9

Light Bulb for Headlight

182005

10

Snap Mount Worklamp Bezel

182251

11

12V DC Relay with Mount

184271

12

Fuse Block

181720

-

Fuse ID Decal

162320

-

Fuse Block Cover

181721

13

30 amp Auto ATC Fuse

181470

-

7.5 Amp Auto ATC Fuse

181460

-

10 Amp Auto ATC Fuse

181462

14

Snap In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

12 Volt Dry Battery

180126

-

M2 Battery Box

723230

17

Battery Hold Down Strap

604785

18

PC Board Support Spacer

423690

19

30" Black Battery Cable

180290

21

24" Red Battery Cable

180322

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

21

20" Red Battery Cable

180319

22

4-Post Solenid Switch Relay

184251

23

6 Terminal Connector (Amp)

184911

24

Modified Pigtail Clutch

604431

25

226V Wiring Assembly

605921

return to 226V index return to top of page
