Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

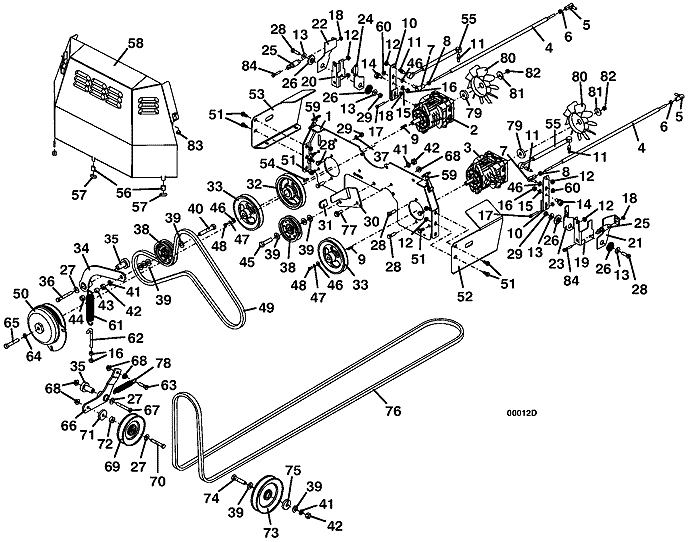

321D • Drive Assembly

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Hydro Pump - left

391460

3

Hydro Pump - right

391461

4

Steering Linkage Rod - 300S

604527

5

Ball Joint

265615

6

Nut .312-24

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut .312-24

254444

9

Square Key

281560

10

Pump Control Arm

754094

-

Air Cooled Control Arm

754020

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257030

14

Eccentric Roller Assembly

603726

15

Washer

257410

16

Nut .375-16

254450

17

Hex Whiz Bolt .25-20 x 1.5

253182

18

Whiz Nut .250-20

253025

19

10A Neutral Return Mount 321

754072

20

10A Neutral Return Mount 321 -left

754073

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257040

28

Hex Bolt .375-16 x 1.25

243335

29

Lock Nut .375-16

253890

30

Anti Rotation Bracket

755046

31

Clutch Bracket Cover

422088

32

Sheave

415884

33

Sheave

415882

34

Idler Arm - 300S Pumps F/A

824484

-

Oilite Bearing

121756

35

Pedestal Bearing .750 x 1.5

121650

36

Hex Bolt .375-16 x 2.750

243360

37

Lock Washer

257412

38

Idler Pulley

393195

39

Washer

257062

40

Full Thread Hex Bolt .500-13 x 3 GR 5

243601

41

Lock Washer

257432

42

Nut .500-13

254470

43

Nylon Bearing

422558

44

Lock Nut .500-13

253930

45

Hex Bolt .500-13 x 2

243580

46

Washer

257020

47

Lock Washer

257392

48

Hex Head Bolt

270820

49

Belt

382038

50

Electric Clutch

388740

51

Hex Flange Whiz Bolt .312-18 x .75

253192

52

right Pump Plate Gusset 300S

729302

53

left Pump Plate Gusset 300S

729303

54

Square Key (Round End) 5mm x 28mm

281670

55

Damper

285031

56

Rear Belt Shield Isolator

422090

57

Rear Belt Shield Isolator

422090

58

Rear Shield Assembly - M1 321D / 325

604754

59

Rubber Latch Draw

281301

60

Whiz Nut .312-24

253038

61

Spring Assembly

604776

62

Idler Adjustment J Bolt

730391

63

Hex Bolt .375-16 x 1.500

243340

64

Lock Washer

257422

65

Hex Bolt .375-24 x 2.250

243349

66

Mule Drive Idler Arm

824486

67

Hex Bolt

243360

68

Whiz Nut .375-16

253043

69

Idler

393376

70

Hex Bolt .375-16 x 2.500

243355

71

Washer

883803

72

Coupling Spacer

902318

73

Idler Pulley

393390

74

Hex Bolt .500-13 x 2.250

243585

75

Retainer Washer .531 x 1.625

883804

76

Belt

382095

-

Belt

382098

77

Flange Whiz Bolt .375-16 x 1

253203

78

Extension Spring with Swivel

283820

79

Fan Mount Hub 10A

885123

80

7" Nylon Fan

320857

81

Retainer Washer

774015

82

Whiz Nut

253038

83

Rubber Bumper

424015

84

Hex Bolt

243035

Return to 321D Index Return to Top
