Genuine OEM Grasshopper Lawn Mower Parts

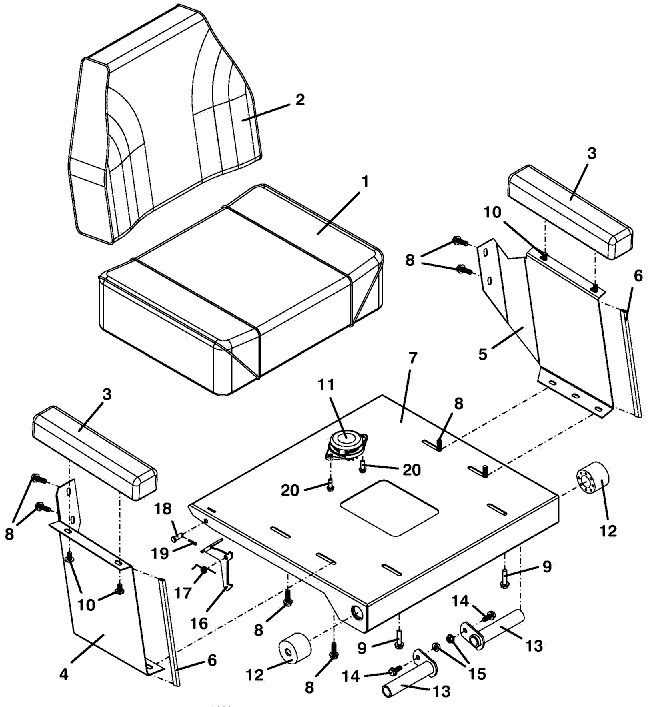

Genuine OEM Grasshopper® Mower Parts Diagrams

321D • Seat Assembly

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion - Cordura

321521

2

Back Cushion - Cordura

321519

3

Seat Armrest - Cordura

321522

4

Seat Side Member - right

724310

5

Seat Side Member - left

724311

6

Seat Edge Trim

822630

7

Seat Platform - 300S M1

643931

8

Hex Flange Whiz Bolt .312-18 x 1

253193

9

Hex Whiz Bolt .312-18 x 1.25

253194

10

Hex Flange Whiz Bolt .312

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt .312-18 x .75

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin .312 x .875

261280

19

Cotter Pin

260648

20

Hex Whiz Bolt .25-.20 x .75

253175

Return to 321D Index Return to Top
