Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

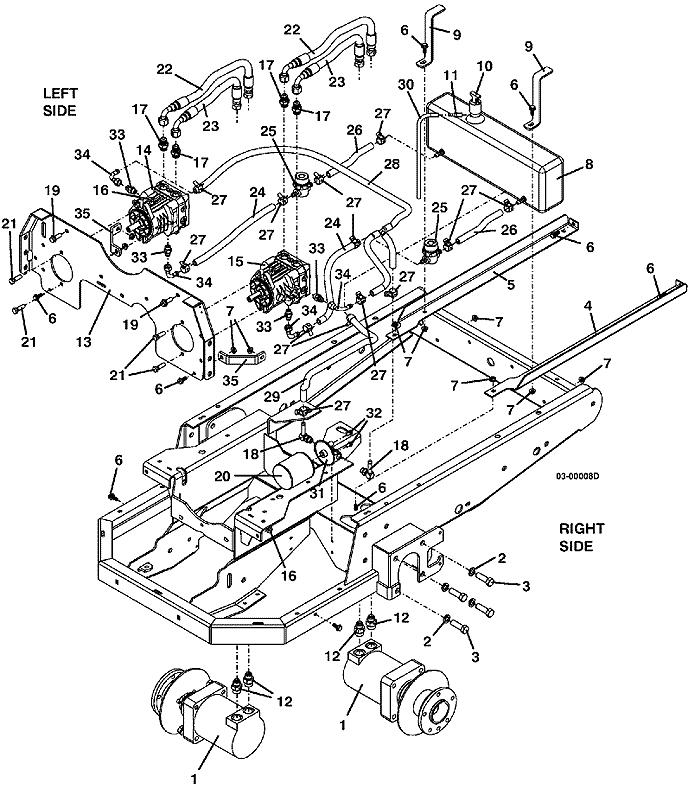

321D • Reservoir and Hose Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603595

2

Lock Washer

257442

3

Hex Bolt .562-18 x 1.75 GR 5

243770

4

300S Tank Rail - right

754068

5

300S Tank Rail - left

754069

6

Flanged Hex Whiz Bolt

253192

7

Whiz Nut

253035

8

Oil Reservoir Assembly - M1 200

603587

-

Fuel Tube Bushing (Grommet)

101875

-

Straight Fitting

363637

-

90 degree Fitting

363638

9

Oil Tank Strap

732557

10

Oil Reservoir Dipstick - M1

100728

11

Straight Barbed Fitting

363826

12

Adapter O-Ring

360063

13

Pump Plate

644619

14

Hydro Pump - left

391460

15

Hydro Pump - right

391461

16

Whiz Nut

253043

17

Adapter O-Ring

360059

-

O Ring

126527

-

O Ring

126535

18

Adapter

360056

19

Flange Whiz Bolt .375-16 x 1

253203

20

High-Efficiency Transaxle Oil Filter

100855

21

Hex Bolt

243335

22

Hose Assembly

424338

23

Hose Assembly

424337

24

Hydraulic Hose

821782

25

In-Line Strainer

366551

26

Hydraulic Hose

821780

27

Spring Hose Clamp

280263

28

Hose Assembly

424323

29

Hydraulic Hose

821787

30

Clear Vent Hose

821724

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt .250-20 x .500

253173

33

Adapter

360057

34

Fitting

363846

35

Pump Plate Rein Strap

732882
