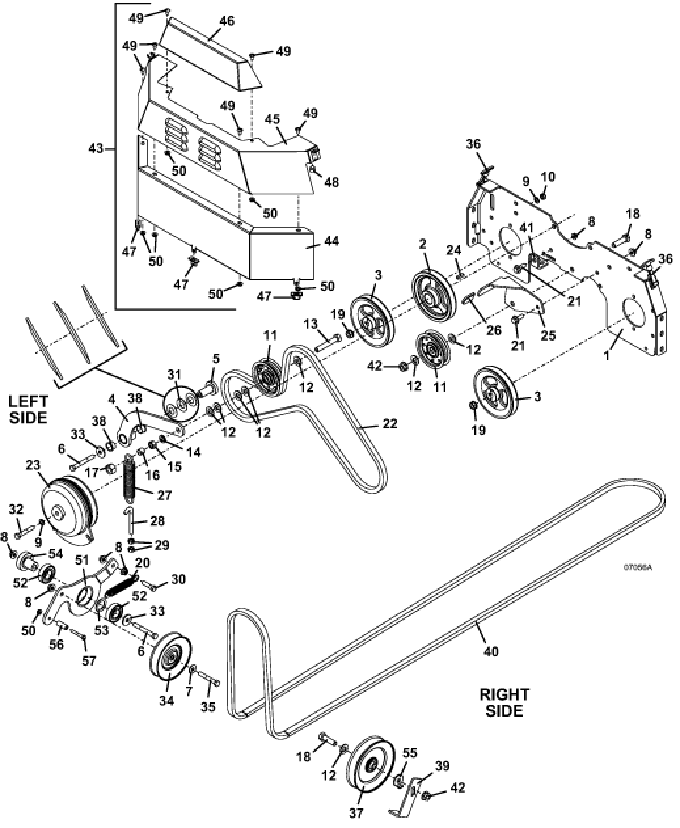

321D • Drive Assembly - Diagram 1

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Sheave

415884

3

Sheave

415898

4

300/400 Pumps Idler Arm

824572

5

Pedestal Bearing

121651

6

Hex Bolt

243365

7

Lock Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut

253890

11

Idler Pulley

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243575

19

Whiz Nut

253061

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt

253203

22

Belt

382035

23

Electric Clutch

388740

24

Square Key

281582

25

Anti-Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Extension Spring

283848

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243340

31

Spring Washer

257319

32

Hex Bolt

243349

33

Washer

774020

34

Idler

393376

35

Hex Bolt

243355

36

Rubber Draw Latch

281301

37

Idler Pulley

393390

38

Oilite Bearing

121756

39

M1 Fixed Idler Belt Guide

755155

40

Belt

382095

41

M1 Idler Spring Bracket

732520

42

Whiz Nut

253066

43

M1 325 Rear Shield Assembly

604729

44

325A Lower Panel Rear Shield

722418

45

321D/52 325 08 Upper RR Shield

644714

46

322D Clutch Cover

722751

47

Rear Belt Shield Isolator

422090

48

Rubber Bumper

424015

49

Whiz Truss Bolt

253176

50

Whiz Nut

253025

51

HD Mule Drive Idler Arm Assembly

824476

52

2 Metal Seal 25mm Ball Bearing

110080

53

Washer

257104

54

Heavy Duty Bearing Pedestal

885015

55

Fixed Idler Tabbed Spacer

754003

56

Guide Tube

784057

57

Hex Bolt

243038

Return to 321D Index Return to Top
