Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

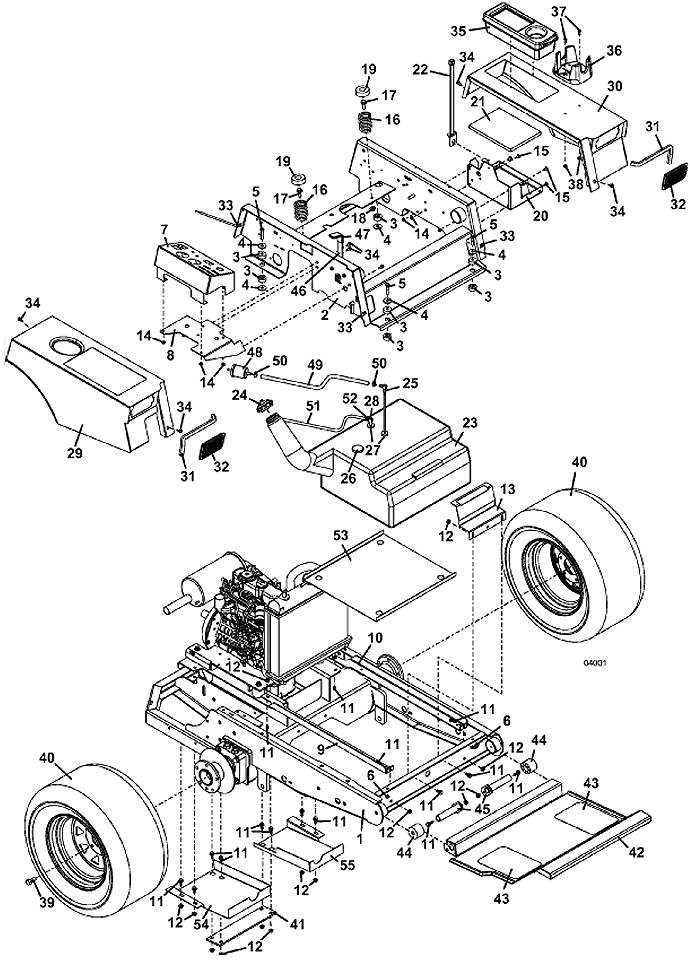

322D • Tractor Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lower 322D Frame

644296

2

M1 300/400 Upper Frame

644248

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

300S M1 Console

644139

8

300/400 Console Mount

644141

9

right 300S Tank Rail

754068

10

left 300S Tank Rail

754069

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Tank Bracket

723091

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Flange Whiz Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Diesel Tank Assembly

604801

24

Screw-on Diesel Fuel Tank Cap

100211

25

Fuel Tube

101815

26

In-Tank Fuel Gauge

141140

-

Grommet

424275

27

Grommet

101875

28

Fuel Return Tube

101813

29

right M1 Fender

644265

-

right 322D Trim Decal

163274

30

left M1 Fender

644266

-

left 322D Trim Decal

163275

31

Trim

822632

32

Worklamp Hole Plug

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253173

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Turf Tire Assembly 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire 24 x 12 x 12

482487

-

Wheel 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

right 12" Wheel & Bar Tread Tire 24 x 12 x 12

483968

-

left 12" Wheel & Bar Tread Tire 24 x 12 x 12

483969

41

Belt Guard Strap

783277

42

M1 On-Frame Foot Rest

644256

-

LC M1 52/61 Foot Rest

644269

43

Foot Rest Tread

420902

-

Foot Rest Tread

420905

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

322D/722D Throttle Assembly

603858

-

Throttle Control Cable Assembly

323656

-

Throttle Lever Stop

722009

47

Handle Grip

422150

48

Kubota Fuel PreFilter

101005

49

300s Fuel Line Hose

821717

50

Spring Hose Clamp

280261

51

300S Fuel Return Hose

821741

52

Spring Hose Clamp

280257

53

M1 Tank Shield

722495

54

right 322 Hydro Debris Shield

723396

55

left 322 Hydro Debris Shield

723397

56

322D Decal Set

604198
