Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
Return to 322D Index Return to Top

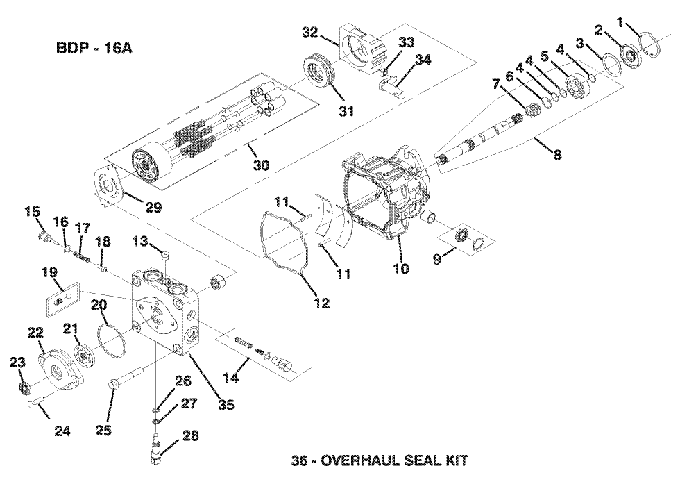

Item #
Description
Part Number
1
Input Seal Retaining Ring
130088
2
Input Seal
130163
3
Input Seal Spacer
130086
4
Input Bearing
130170
5
130080
6
Block Thrust Washer
130220
7
Block Spring
130015
8
Shaft Kit
130178
9
Trunnion Seal Kit
125357
10
housing Kit
130054
11
Locating Pin
130046
12
Molded Seal Ring
130184
13
O-Ring Boss Plug
103739
14
Shock Valve Kit
130160
15
Check Plug
130030
16
Check Plug O-Ring
130031
17
Poppet Spring
130157
18
Poppet
130155
19
Charge Relief Kit
130027
20
Charge Cover Seal Ring
130020
21
Gerotor Set
130060
22
Charge Cover
130022
23
Fan Shaft Seal
125165
24
Socket Head Cap Screw
270078
25
Flanged Head Hex Screw
271080
26
Bypass Valve O-Ring
130018
27
Back Up Ring
130017
28
Bypass Valve - NOT AVAILABLE
000000
29
Valve Plate(Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above)
130214
30
Block Kit
130152
31
Thrust Bearing
130008
32
Swashplate - NOT AVAILABLE
33
Guide Block
130065
34
Trunnion Arm
130035
35
End Cap
130044
-
End Cap(Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above)
130048
36
Seal Kit
130186
