Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

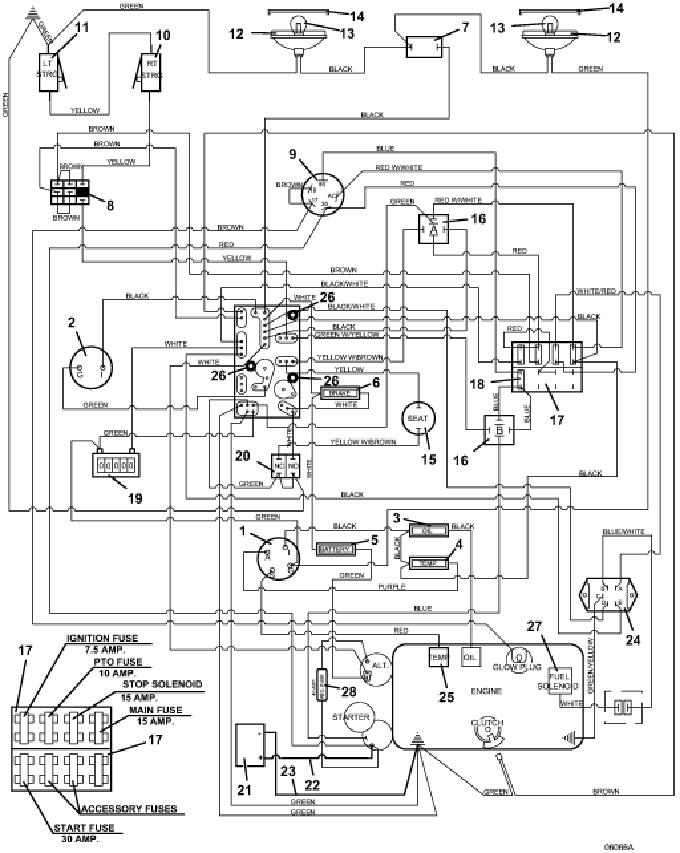

322D • Electrical Wiring

2007

Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

Left Steering Switch Mount

720161

12

Flood Worklamp

182253

13

Light Bulb for Worklamp

182005

14

Snap-Mount Bezel for Worklamp

182251

15

Twist-in Seat Switch

183871

16

12 volt DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Wire Fuse Clip

184472

18

Auto ATC 30 Amp Fuse

181470

-

Auto ATC 7.5 Amp Fuse

181460

-

Auto ATC 10 Amp Fuse

181462

-

Auto ATC 15 Amp Fuse

181465

19

Snap-in Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

-

12 Volt Side Post Dry Battery

180131

-

Hex Bolt

243309

22

42" Red Battery Cable

180340

-

Red Alternator Terminal Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

39" Black Battery Cable

180295

24

D902 Switch Interlock Module

184217

25

Temperature Sender

141222

26

PC Board Support Spacer

423690

27

Fuel Valve Solenoid

101046

28

322D/325D Wiring Assembly

604888

-

Inline Regulator Fuse Holder

181475

29

322D/325D Wiring Assembly

605923

30

Console Decal

161123
