Genuine OEM Grasshopper Lawn Mower Parts

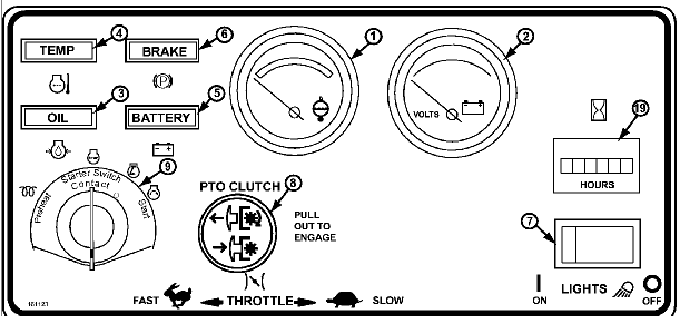

Genuine OEM Grasshopper® Mower Parts Diagrams

322D • Console

2009

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temp Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Light Indicator

182327

4

Temp Light Indicator

182328

5

Battery Light Indicator

182325

6

Brake Light Indicator

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Double Notch Kubota Key Ignition

101106

19

Snap-In Hour Meter

141551

20

Console Decal

161123
