Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

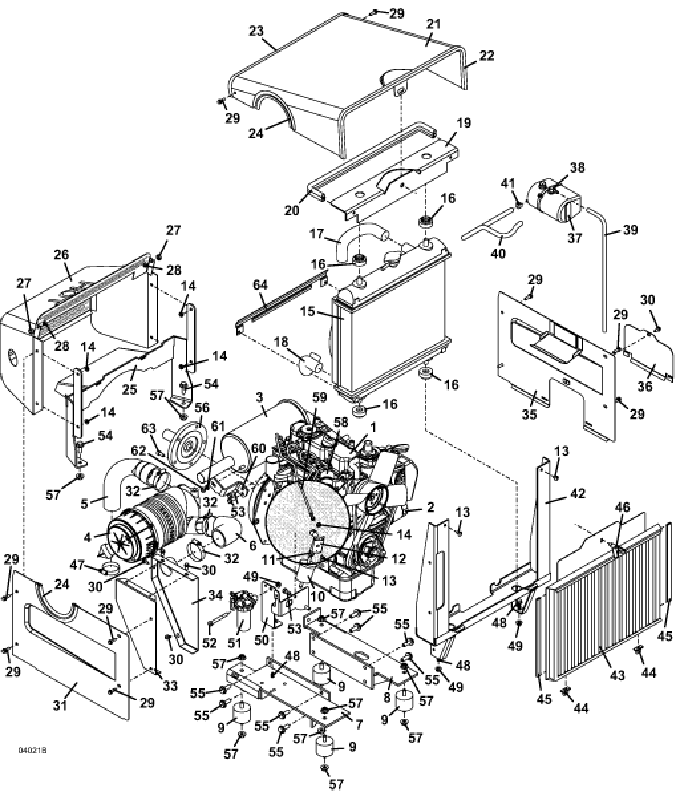

322D • Engine Assembly

2009

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100177

2

Kubota Oil Filter

100800

3

Kubota 902 Muffler

101235

-

Exhaust Flange Gasket

101040

4

Nelson 90 degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Breather/Manifold Hose

424526

6

Breather Inlet Hose

424520

7

920D right Engine Mount

644286

8

920D left Engine Mount

644287

9

Vibration Isolator

424078

10

Kubota Fuel PreFilter

101005

11

Spring Hose Clamp

280261

12

928 Linkage Extension

723063

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Kubota Radiator

101612

16

Radiator Mount Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

Upper Hood

644293

22

Front Hood Trim

822639

23

Rear Hood Trim

822637

24

Air Cleaner Trim Seal

822513

25

rear Hood Support

644810

26

902D W/A Hood

644329

27

.25 THK Spacer

902297

28

Lock Nut

253850

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

right Hood Side

722712

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

722D W/A left Hood Side

644322

36

Oil filter Cover

722722

37

Expansion Tank

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

902 Lower Radiator Mount

644658

43

722D Grille Assembly with Guard

604382

44

Rear Belt Isolator Shield

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Hex Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Fuel Filter Mount

754198

51

Kubota Fuel Filter

101000

52

Whiz Bolt

253197

53

Hex Bolt

271021

54

Flange Whiz Bolt

253203

55

Hex Bolt

271121

56

Clutch Stub Shaft

824637

57

Whiz Nut

253043

58

Fuel Valve Solenoid

101046

59

Manual Stop Lever Extension

246880

-

Red Vinyl Cap

422092

60

Muffler Support Snap

732601

61

Lock Washer

257402

62

Hex Nut

274145

63

M8 Socket Head Screw

270075

64

Fan Shield

721006
