Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

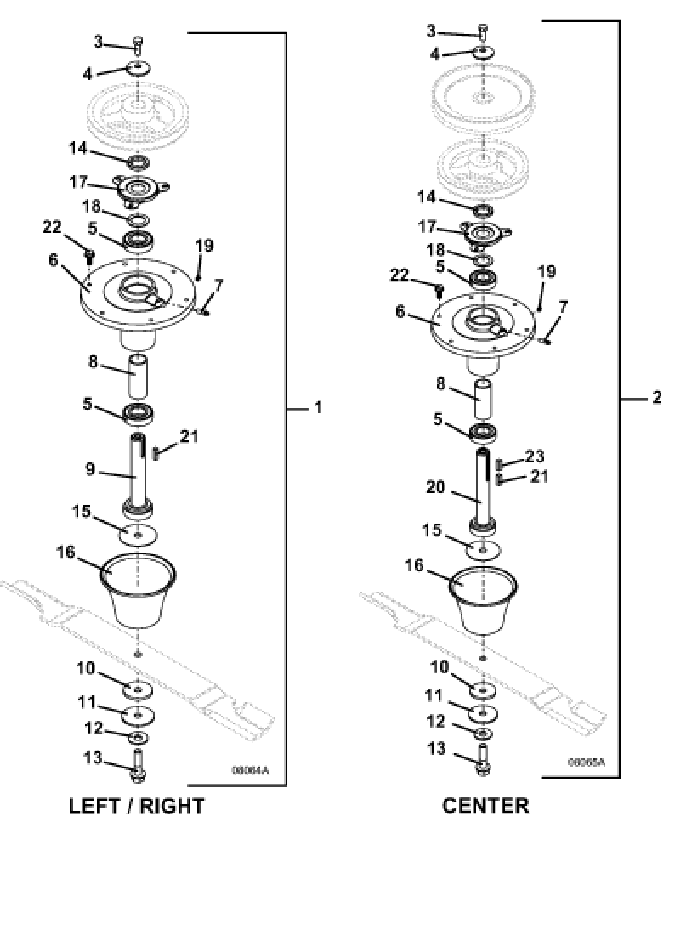

325D • Blade Spindle Assembly - M172

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly, Left & Right (includes items 3-19)

623764

2

Spindle Assembly, Center (includes items 3-8 and 10-20)

623765

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Bearing Ball 2 Reg Seal 25MM

110081

6

Spindle Housing Assembly

604414

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Hex Bolt Flange Grade 8

243583

14

Spacer

282607

15

Washer

772061

16

Deflector Cone

423680

17

Shield Bearing

721167

18

Washer

257104

19

Relief Plug

280705

20

M1 Spindle Shaft Assembly

604773

21

Square Key

281583

22

Hex Flange Whiz Bolt

253192

23

Key Square

281582
