Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

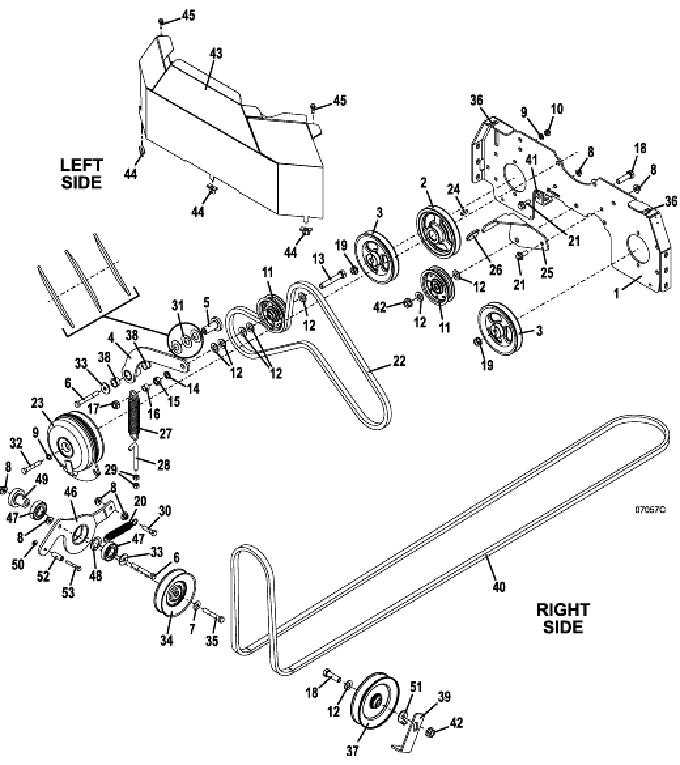

325D • Drive Assembly

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Sheave

415884

3

Sheave

415898

4

Idler Arm - 300/400 Pumps

824572

5

Pedestal Bearing

121651

6

Hex Bolt

243365

7

Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut

253890

11

Idler Pulley

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243575

19

Whiz Nut

253061

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt

253203

22

Pump Belt

382035

23

Clutch Assembly

388740

24

Square Key

281582

25

Anti Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Extension Spring

283848

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243340

31

Spring Washer

257319

32

Hex Bolt

243349

33

Washer

774020

34

Idler

393376

35

Hex Bolt

243355

36

Speed Nut

254431

37

Idler

393390

38

Oilite Bearing

121756

39

M1 Fixed Idler Guide Belt

755155

40

Belt for 52" & 61" Decks

382111

-

Belt for 72" Decks

382117

41

M1 Idler Spring Bracket

732520

42

Whiz Nut

253066

43

Belt Shield

645722

44

Rear Belt Shield Isolator

422090

45

Hex Whiz Bolt

253175

46

HD Mule Drive Idler Arm Assembly

824476

47

2 Metal Seal Ball Bearing 25MM

110080

48

Washer

257104

49

Heavy Duty Bearing Pedestal

885015

50

Whiz Nut

253025

51

Fixed Idler Tabbed Spacer

754003

52

Guide Tube

784057

53

Hex Bolt

243038
