Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

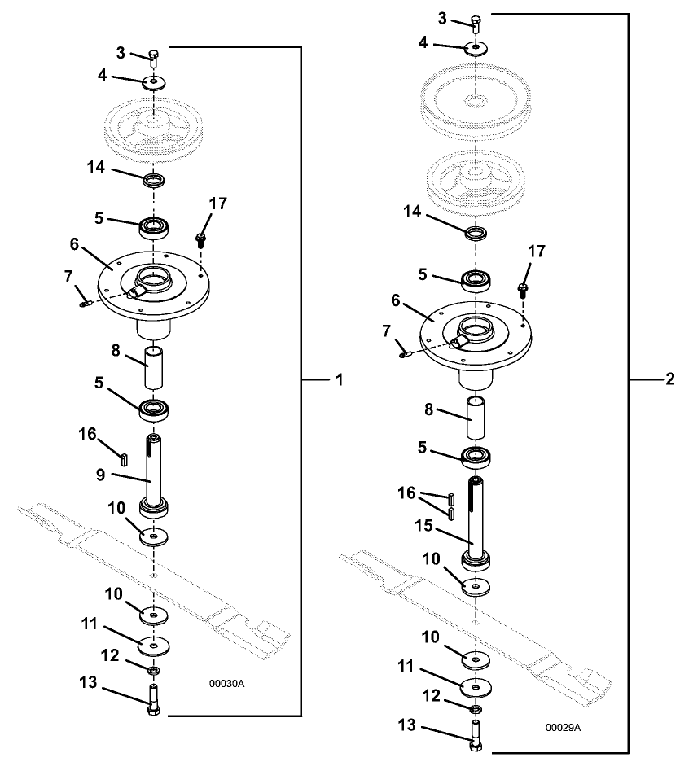

327A • Blade Spindle Assembly - M172

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 left/right Spindle Assembly (includes items 3-14)

623786

2

M172 center Spindle Assembly (includes items 3-8 and 10-15)

623787

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Single Seal Ball Bearing

110082

6

Machined Deep Spindle Housing Assembly

824150

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Grade 5 Hex Bolt

243581

14

Spacer

282615

15

M1 Spindle Shaft Assembly

604773

16

Square Key

281583

17

Hex Flange Whiz Bolt

253192

Return to 327A 2004 Index Return to Top of Page
