Genuine OEM Grasshopper® Mower Parts Diagrams

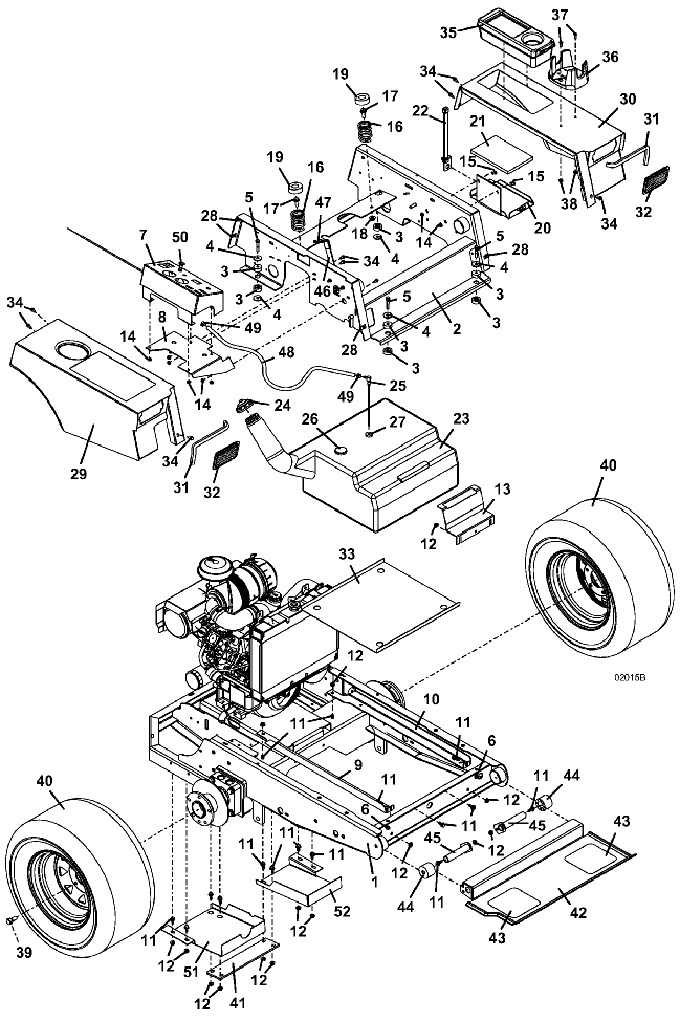

327A • Tractor Assembly
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
325A/327KW Lower Frame |
644281 |
2 |
M1 300/400 Upper Frame |
644248 |
3 |
Step Bushing |
257037 |
4 |
Washer |
774020 |
5 |
Hex Bolt .312-18 x 1.750 |
243220 |
6 |
Nylon Insert Nut |
253450 |
7 |
M1 W/A Console |
644164 |
8 |
300/400 Console Mount |
644141 |
9 |
300S Right Tank Rail |
754068 |
10 |
300S Left Tank Rail |
754069 |
11 |
Hex Flange Whiz Bolt |
253192 |
12 |
Whiz Nut |
253035 |
13 |
300/400 Front Tank Bracket |
723091 |
14 |
Whiz Nut |
253025 |
15 |
Truss Whiz Bolt |
253176 |
16 |
Compression Spring |
283516 |
17 |
Whiz Bolt |
253203 |
18 |
Whiz Nut .375-16 |
253043 |
19 |
Seat Spring Cap |
422127 |
20 |
Battery Box 220/225/227 |
644090 |
21 |
Battery Tray Pad |
427272 |
22 |
Battery Hold Down Strap |
604785 |
23 |
M1 Gas Tank Assembly |
604800 |
24 |
Fuel Tank Cap |
100210 |
25 |
Fuel Draw Tube |
101814 |
26 |
In-Tank Fuel Gauge |
141140 |
- |
Grommet - Fuel Gauge Mount |
424275 |
27 |
Fuel Tube Bushing (Grommet) |
101875 |
28 |
Speed Nut |
254431 |
29 |
M1 Right Fender |
644265 |
- |
Right Trim 327A Decal |
163278 |
30 |
M1 Left Fender |
644266 |
- |
327A Left Trim Decal |
163279 |
31 |
700/900 Fender Edge Trim |
822635 |
32 |
Plug for Work Lamp Hole |
422079 |
33 |
M1 Tank Shield |
722495 |
34 |
Hex Whiz Bolt |
253173 |
35 |
Tool Box |
422040 |
36 |
Cup Holder |
150225 |
37 |
Screw Cap |
259030 |
38 |
Nut |
254436 |
39 |
Lug Bolt |
248565 |
40 |
Wheel & Tire Assembly (Turf) 24 x 12 x 12 |
483965 |
- |
(Tire Only) Turf Tire 23 x 10.5 x 12 |
482485 |
- |
(Tire Only) Turf Tire 24 x 12 x 12 |
482486 |
- |
(Tire Only) AT101 Bar Tread 24 x 12 x 12 |
482487 |
- |
Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks) |
483440 |
- |
Wheel Only 12 x 8.5 x 5.750 (for 52" Decks) |
483445 |
- |
Wheel & Tire Assembly (Turf) 23 x 10.5 x 12 |
483960 |
- |
Right 12" Wheel & Tire Assembly (Bar) |
483968 |
- |
Left 12" Wheel & Tire (Bar) |
483969 |
41 |
Belt Guard Strap |
783277 |
42 |
LC M1 52/61 Footrest |
644269 |
- |
M1 On-Frame Foot Rest |
644256 |
43 |
Foot Rest Tread |
420905 |
- |
Foot Rest Tread |
420902 |
44 |
Seat Isolator |
424095 |
45 |
Seat Hinge Pin |
644618 |
46 |
Throttle Assembly |
603821 |
- |
Control Cable Assembly |
323655 |
- |
Throttle Stop Lever |
722009 |
47 |
Handle Grip |
422150 |
48 |
Fuel Hose |
821738 |
49 |
Hose Spring Clamp |
280260 |
50 |
Mechanical Choke |
142234 |
51 |
300S Right Hydro Debris Shield |
723050 |
52 |
300S Left Hydro Debris Shield |
723051 |
53 |
Decal Set - 327A Tractor |
604196 |
