Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

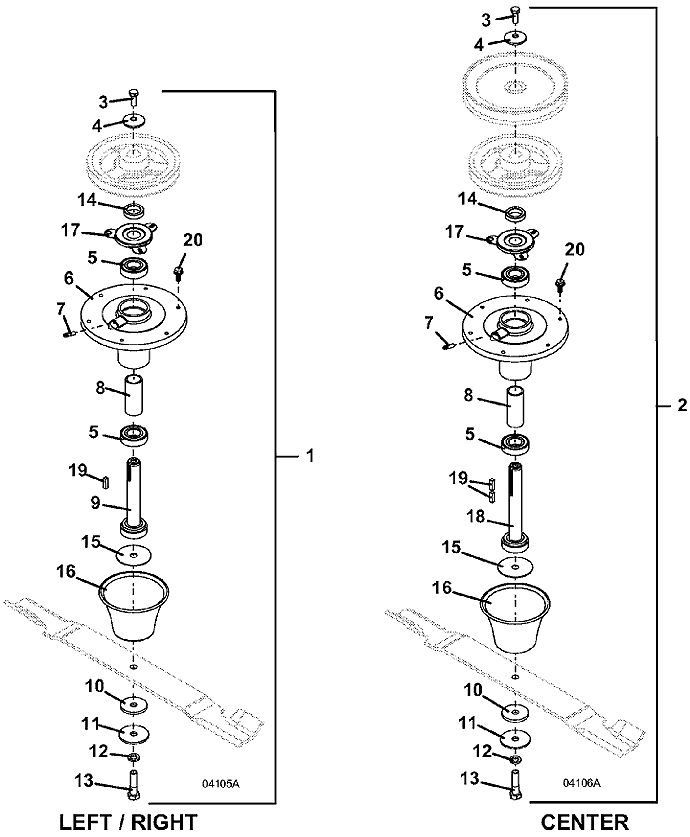

329 • Blade Spindle Assembly - M172

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 left/right Spindle Assembly (includes items 3-17)

623764

2

M172 center Spindle Assembly (includes items 3-9 and 11-18)

623765

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Single Seal Ball Bearing

110082

6

Cast Spindle Housing

824151

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243581

14

Spacer

282615

15

Washer

772061

16

Deflector Cone

423680

17

Bearing Shield

721167

18

M1 Spindle Shaft Assembly

604773

19

Square Key

281582

20

Hex Flange Whiz Bolt

253192
