Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

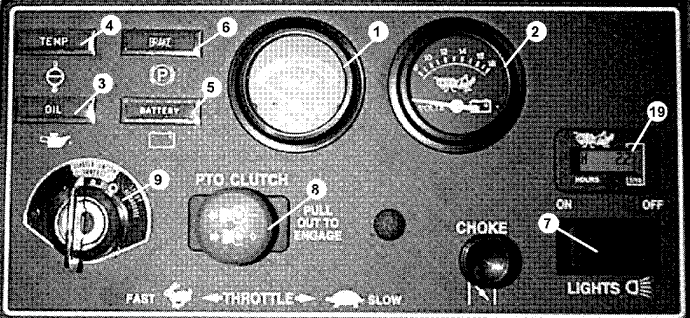

329 • Console

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

-

Gauge Light

141210

2

Voltmeter Gauge

141200

-

Gauge Light

141210

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push / Pull Switch

183925

9

Sealed Key Switch - Kubota

183827

23

Snap-in Hour Meter

141551

24

M1 329/432 Console Decal

161143
