Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

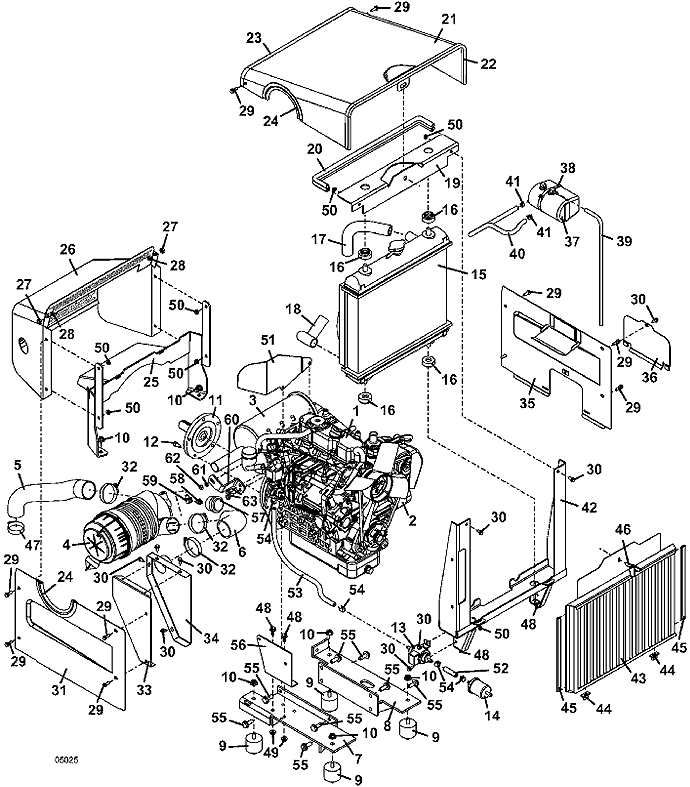

329 • Engine Assembly

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Kubota Flange Exhaust Gasket

101040

4

Nelson 90 degree Air Cleaner

100207

-

Air Cleaner Cover Clip

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Kohler Rain Cap

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Air Intake Hose

424535

6

Breather Inlet Hose

424520

7

902D right Engine Mount

644286

8

902D left Engine Mount

644287

9

Vibration Isolator

424078

10

Whiz Nut

253043

11

Clutch Stub Shaft

824637

12

M8 Socket Head Screw

270075

13

Electric Fuel Pump

101510

14

Kubota Fuel PreFilter

101005

15

Kubota Radiator

101612

16

Radiator Isolator Mount Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

722D Upper Hood

644293

22

Front Hood Trim

822639

23

Rear Hood Trim

822637

24

Air Cleaner Seal Trim

822513

25

Rear Hood Support

644810

26

W/A 920D Hood

644329

27

.25 THK Spacer

902297

28

Nylon Insert Nut

253440

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

right Hood Side

722712

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

left 722D W/A Hood Side

644322

36

Oil Filter Cover

722722

37

Expansion Tank

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

Lower 902 Radiator Mount

644658

43

920D Grille with Guard

644668

44

Rear Belt Isolator Shield

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Hex Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Whiz Nut

253025

51

Muffler Shield

723228

52

Fuel Hose

821726

53

928D Fuel Line Hose

821716

54

Spring Hose Clamp

280261

55

Hex Bolt

271121

56

Coil Mount

754224

57

Filter Minder Gauge with Mount

141012

58

O-Ring Filter Fitting

363815

59

Street Ell Fitting

363828

60

Muffler Support Strap

732601

61

Lock Washer

257402

62

Hex Bolt

274145

64

Hex Bolt Fl W/Ser

271021
