Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

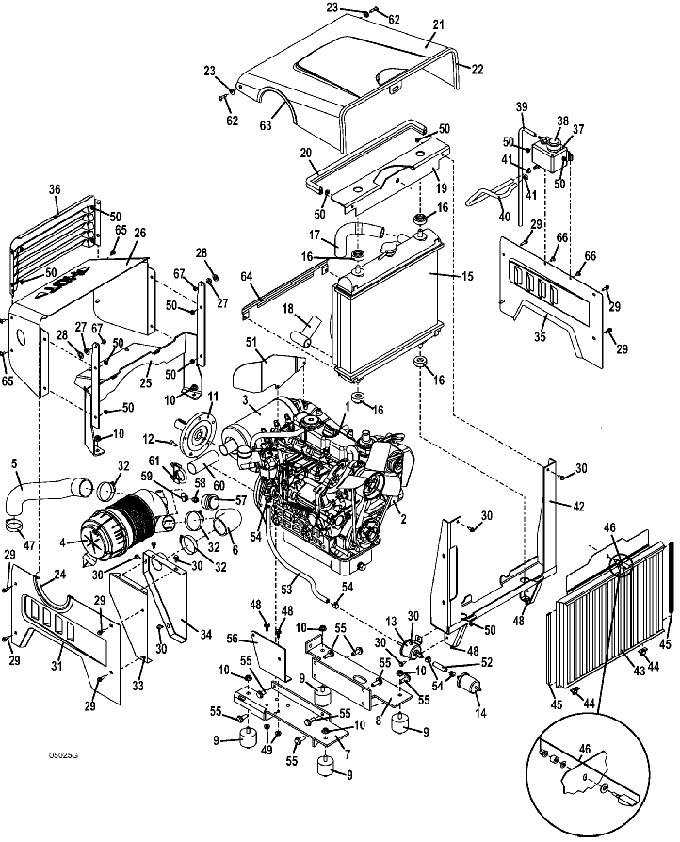

329 • Engine Assembly

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

WG972 2011 Kubota Muffler

101236

-

Kubota Flange Exhaust Gasket

101040

4

Nelson 90 degree Air Cleaner

100207

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Air Intake Hose

424535

6

Breather Inlet Hose

424520

7

902D right Engine Mount

644286

8

902D left Engine Mount

644287

9

Vibration Isolator

424078

10

Whiz Nut

253043

11

Clutch Stub Shaft

824637

12

M8 Socket Head Screw

270075

13

Electric Fuel Pump

101510

14

Kubota Fuel PreFilter

101005

15

Kubota Radiator

101612

16

Radiator Isolator Mount Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Hood Bulb Seal

822518

21

725d/932 Engine Hood W/A

644438

22

Front Hood Trim

822639

23

Step Bushing

422508

24

Air Cleaner Seal Trim

822513

25

Hood Support

644854

26

Hood Box Panel With Converter

722942

27

Hood Hinge Spacer

901324

28

Washer

257063

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

725DT6 Right Hood Side

722920

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

725DT6 Left Hood Side

762521

-

725DT6 Left Hood Side

645311

36

Rear Hood Grill

645270

37

Expansion Tank - Water

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

Lower 902 Radiator Mount

644658

43

920D Grille with Guard

644668

44

Rear Belt Isolator Shield

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Hex Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Whiz Nut

253025

51

Muffler Shield

723228

52

Fuel Hose

821726

53

928D Fuel Line Hose

821716

54

Spring Hose Clamp

280261

55

Hex Bolt

271121

56

Coil Mount

754224

57

Filter Minder Gauge with Mount

141012

58

O-Ring Filter Fitting

363815

59

Street Ell Fitting

363828

60

942418

942418

61

Exhaust Clamp

101356

62

Hex Bolt

2253181

63

Trim

822632

64

Fan Shield

721006

65

Bolt

253180

66

Truss W

253176

67

Trim

822632
