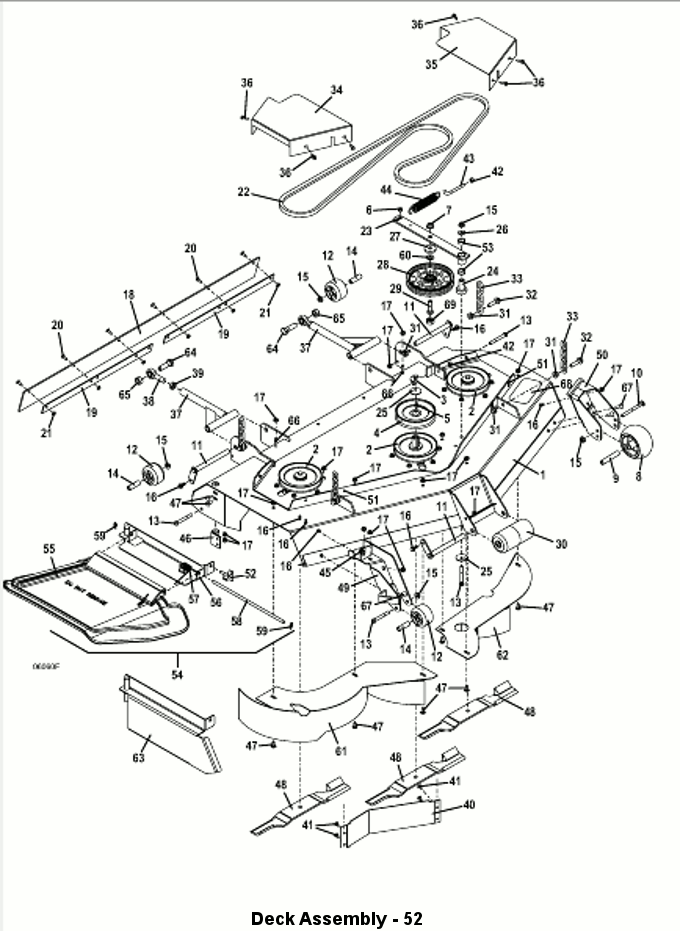

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
Item #
Description
Part Number
1
M152/07 Deck Weldment
644159
2
Sheave
415892
3
Hex Bolt
243331
4
415897
5
Square Key
281582
6
Nylon Bearing
422520
7
Flange Spiral Lock Nut
253067
8
Anti-Scalp Center Hub Wheel
484230
9
Bearing Tube
942137
10
Carriage Bolt
247310
11
Roller Lock Pin
644512
12
Roller
426122
13
243365
14
Roller Mount Spacer
902284
15
Whiz Nut
253043
16
Hex Flange Whiz Bolt
253192
17
253035
18
M1 52" Deck Flap
424205
19
M1 52-9861 right Deflector Strap
774280
20
Bolt
253181
21
253025
22
Belt
382082
23
M1 52/61 Idler Arm
824488
24
Pedestal Bearing
121650
25
Cupped Washer
257041
26
Washer
257040
27
257160
28
Idler
393250
29
243575
30
2 Piece Center Roller Assembly
603725
31
253058
32
GR 8 Hex Bolt
243458
33
5 Links M1 Chain
820331
34
right Belt Shield 52/220
722333
35
left Belt Shield 52/220
722334
36
Hex Whiz Bolt
253175
37
Radius Arm Assembly
604675
38
Rod End
265665
39
Nut
254493
40
Aux Front Shroud - M1/3452
724588
41
Bolt Whiz Truss
253176
42
254450
43
Idler Adjustment J Bolt
730391
44
Extension Spring
283848
45
Speeed Nut
254448
46
Vac Housing Pivot Mount
643632
47
247130
48
18" Medium Lift Blade
320236
-
18" Contour Blade
320238
18" High Lift Notch Blade
320239
18" Extreme Hi-Lift Blade
320241
18" Hi-Low Mulch
320240
49
Right Anti-Scalp Roller Mount M152
645578
50
Left Anti-Scalp Roller Mount M152
645579
51
Speed Nut
254431
52
3 Prong Head Deck Stud (Knob)
252821
53
Oilite Bearing
121756
54
Discharge Flex Shield Assembly
604317
55
Discharge Flex Shield
422042
56
Discharge Flex Shield Mount
644570
57
Torsion Spring
284406
58
Discharge Flex Shield Pin
780650
59
Cotter Ring
260608
60
257062
61
M1 52 right Mulch Plate
644608
62
M1 52 left Mulch Plate
644609
63
Mulch End Cap
644058
64
243810
65
Lock Nut
253970
66
Bolt Whiz Hex Flange
253195
67
247135
68
Step Tread
420901
69
Idler Arm Stabilizer Cap
423670
