Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

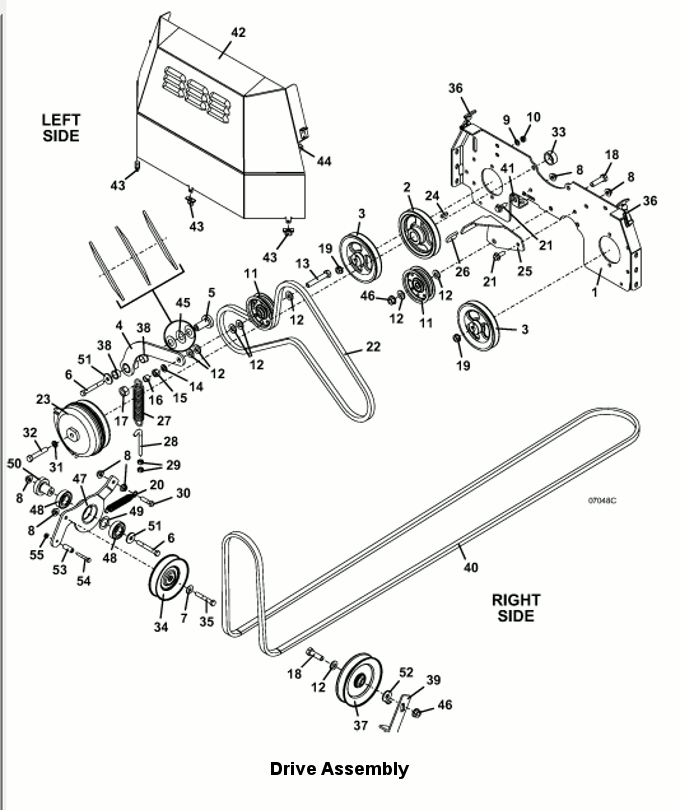

329B • Drive Assembly

2010 ½

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Sheave

415884

3

Sheave

415898

4

Idler Arm - 300/400 Pumps

824572

5

Pedestal Bearing

121651

6

Hex Bolt

243365

7

Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut

253890

11

Idler Pulley

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243575

19

Whiz Nut

253061

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt

253203

22

Belt

382035

23

Clutch Assembly - 329B/335B/335

606243

-

Step Bushing

884313

24

Square Key

281582

25

Anti Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Extension Spring

283848

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243340

31

Lock Washer

257422

32

Hex Bolt

243470

33

Spacer

902588

34

Idler

393376

35

Hex Bolt

243355

36

Rubber Draw Latch

281301

37

Idler

393390

38

Oilite Bearing

121756

39

M1 Fixed Idler Guide Belt

755155

40

Belt

382093

-

Belt

382113

41

M1 Idler Spring Bracket

732520

42

Rear Shield Assembly

604754

43

Rear Belt Shield Isolator

422090

44

Rubber Bumper

424015

45

Spring Washer

257319

46

Nut - Whiz

253066

47

Idler Arm Assembly - HD Mule Drive

824476

48

Ball Bearing 2 Metal Seal 25MM

110080

49

Washer

257104

50

Pedestal Bearing - Heavy Duty

885015

51

Washer

774020

52

Tabbed Spacer - Fixed Idler

754003

53

Guide Tube

784057

54

Hex Bolt

243038

55

Whiz Nut

253025
