Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.

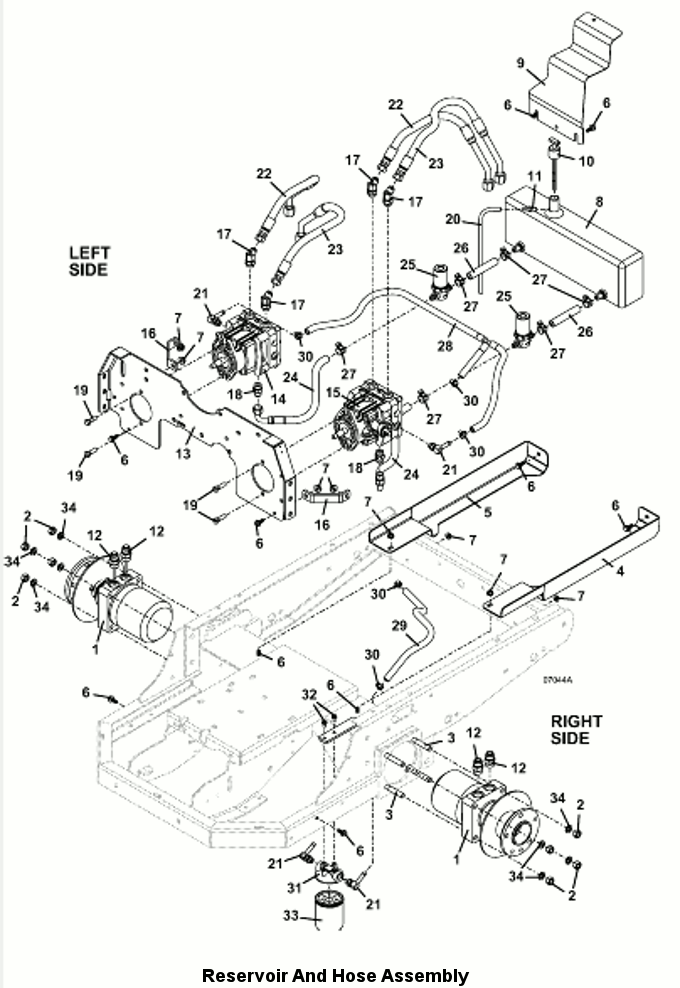

Item #
Description
Part Number
1
Wheel Motor with Hub
603602
2
Nut
254470
3
Diamond Head Bolt
243597
4
Tank Rail - right
645800
5
Tank Rail - left
645801
6
Hex Flange Whiz Bolt .312-18 x .75
253192
7
Whiz Nut
253035
8
M1 300/400 Oil Reservoir Assembly
603606
-
Grommet
101875
101880
Straight Fitting
360058
90 degree Fitting
363638
9
Oil/Fuel Tank Anchor
723041
10
M1 Oil Reservoir Dipstick
100728
11
Straight Barbed Fitting
363826
12
Adapter Fitting
360069
13
Pump Plate
644619
14
Hydro Pump - left
391462
15
Hydro Pump - right
391463
16
Pump Plate Rein Strap
732882
17
360046
18
Steel O-Ring Boss Fitting
363832
19
Hex Bolt
243335
20
Clear Vent Hose
821724
21
Adapter
360056
22
Hose Assembly
424375
23
424377
24
424314
25
In-Line Strainer
366553
26
Hydraulic Hose
821794
27
Spring Hose Clamp
280266
28
Return Hose Assembly
424313
29
821787
30
280264
31
M1 Series Filter Base
101024
32
Hex Whiz Bolt
253173
33
High-Efficiency Transaxle Oil Filter
100855
34
Lock Washer
257432
