Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
Item #
Description
Part Number
1

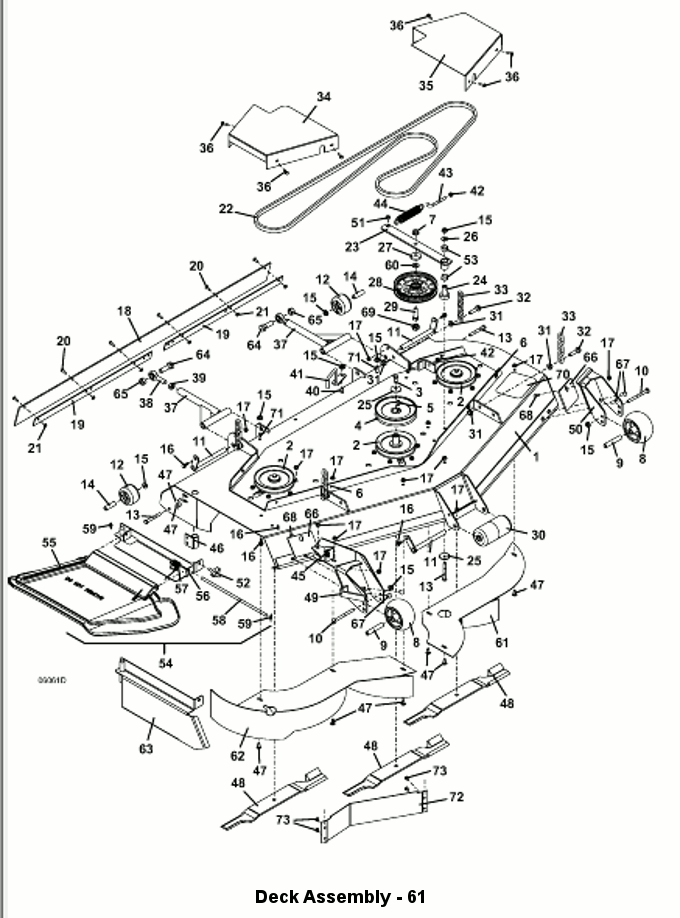

M161 / 07 Deck Weldment
644160
2
Sheave
415892
3
Hex Bolt
243331
4
415896
5
Square Key
281582
6
Speed Nut
254431
7
Flange Spiral Lock Nut
253067
8
Anti-Scalp Center Hub Wheel
484230
9
Bearing Tube
942137
10
Carriage Bolt
247310
11
Roller Lock Pin
644512
12
Roller
426122
13
243365
14
Roller Mount Spacer
902284
15
Whiz Nut
253043
16
Hex Flange Whiz Bolt
253192
17
253035
18
M1 61 Deck Flap
424204
19
Deflector Strap
774337
20
Truss Whiz Bolt
253179
21
253025
22
Belt
382085
23
M1 52/61 Idler Arm
824488
24
Pedestal Bearing
121650
25
Cupped Washer
257041
26
Washer
257040
27
Retainer Washer
883804
28
Idler
393250
29
243575
30
2 Piece Center Roller Assembly
603725
31
253058
32
GR 8 Hex Bolt
243458
33
M1 5 Links Chain
820331
34
right Belt Shield - Mid 61
722451
35
left Belt Shield - Mid 61
722452
36
Hex Whiz Bolt
253175
37
Radius Arm Assembly
604675
38
Rod End
265665
39
Nut
254493
40
Flange Whiz Bolt
253203
41
M1 Deck Belt Guide
644086
42
254450
43
Idler Adjustment J Bolt
730391
44
Extension Spring
283848
45
Speeed Nut
254448
46
Vac Housing Pivot Mount
643632
47
247130
48
21" Medium Lift Blade
320242
-
21" Contour Blade
320244
21" High Lift Notch Blade
320245
21" Extreme Hi-Lift Blade
320246
21" Hi-Low Mulch
320247
49
right Anti-Scalp Roller Mount
644584
50
left Anti-Scalp Roller Mount
643695
51
Nylon Bearing
422520
52
3 Prong Head Deck Stud (Knob)
252821
53
Oilite Bearing
121756
54
Discharge Flex Shield Assembly
604317
55
Discharge Flex Shield
422042
56
Discharge Flex Shield Mount
644570
57
Torsion Spring
284406
58
Discharge Flex Shield Pin
780650
59
Cotter Ring
260608
60
257062
61
M1 61 left Mulch Plate
644610
62
M1 61 right Mulch Plate
644611
63
Mulch End Cap
644058
64
243810
65
Lock Nut
253970
66
Roller Spacer
775068
67
247135
68
Bolt Whiz Hex Flange
253193
69
Idler Arm Stabilizer Cap
423670
70
Foot Rest Ext Tread
420904
71
243335
257030
72
Aux Front Shroud - M1/3461
724589
73
Bolt Whiz Truss
253176
