Genuine OEM Grasshopper Lawn Mower Parts

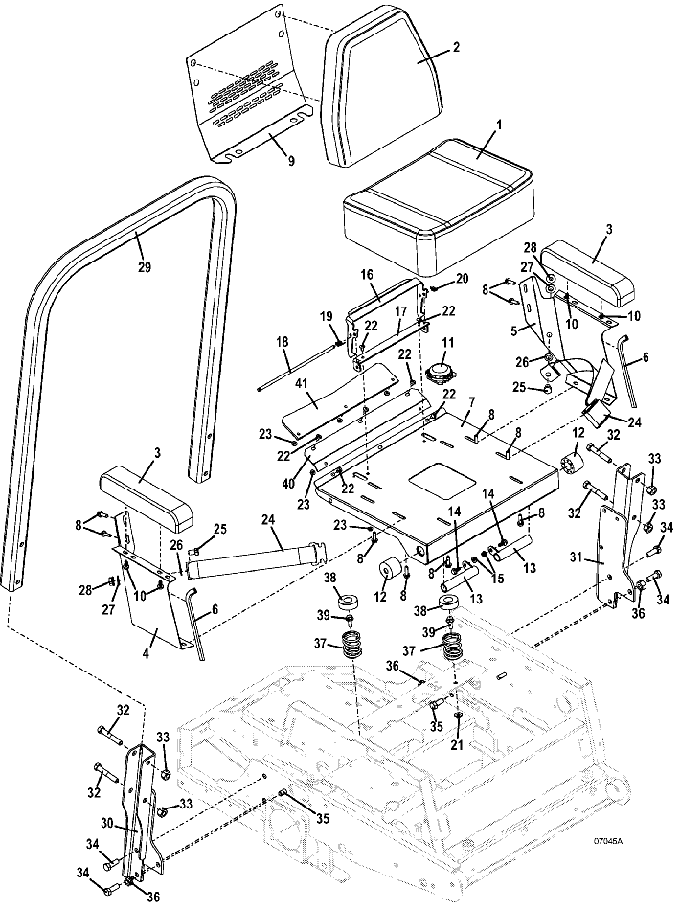

Genuine OEM Grasshopper® Mower Parts Diagrams

329B • ROPS & Seat Assembly

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seat Cushion - Cordura

321518

2

Back Cushion - Cordura

321519

3

Contoured Armrest - Cordura

321523

4

Raised Backrest Seat Side - right

723433

5

Raised Backrest Seat Side - left

723434

6

Seat Edge Trim

822630

7

200 Dual Latch Seat Platform

643903

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement - Raised Backrest

722884

10

Hex Flange Whiz Bolt

253191

11

Twist-in Seat Switch

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Dual Latch

754240

17

Dual Latch Mount Bracket

754226

18

Seat Latch Pivot Pin

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Whiz Nut

253043

22

Truss Hex Whiz Bolt

253176

23

Whiz Nut

253025

24

Non-retractable Seat Belt

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nylon Insert Nut

253470

29

M1 ROPS (Roll-Over Protection Structure)

324104

30

ROPS Mount - right

643862

31

ROPS Mount - left

643863

32

Hex Bolt

243600

33

Lock Nut

253930

34

Hex Bolt

243570

35

Hex Bolt

243565

36

Flange Spiral Lock Nut

253067

37

Compression Spring

283516

38

Seat Spring Cap

422127

39

Flange Whiz Bolt

253203

40

Extension Strap

773161

41

200 Series Seat Flap

424177
