Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

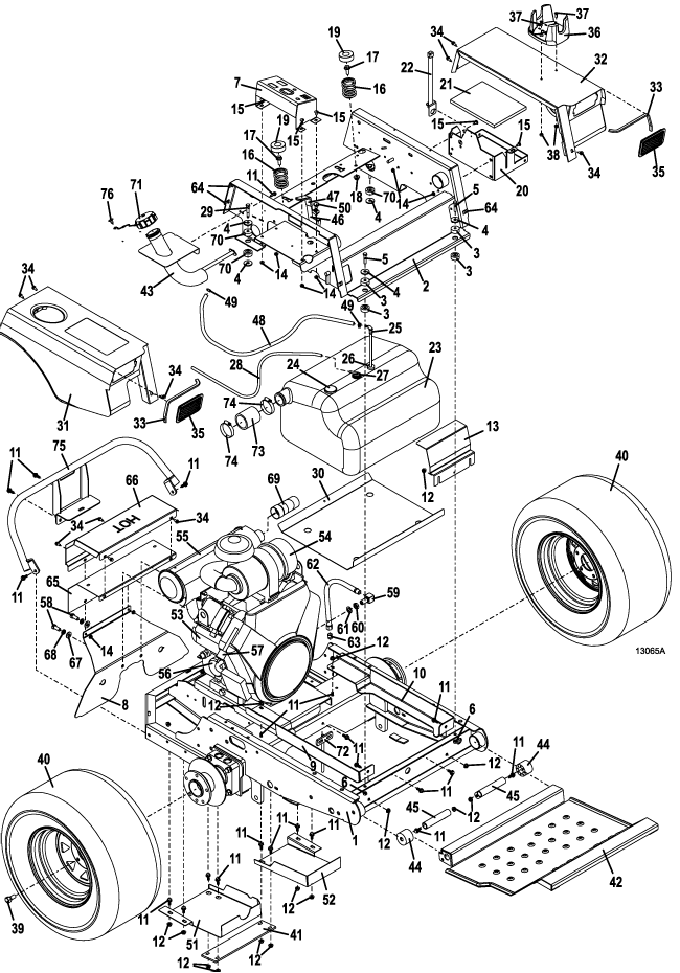

329B • Tractor Assembly

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Frame -

645210

2

Upper Frame

644889

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Console w/Decal 329B/335B

693118

8

Muffler Shield -Lower

766187

9

Tank Rail - right

645800

10

Tank Rail - left

645801

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Gas Tank Anchor

722948

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1/200V Tank Assembly

605798

24

Intank Fuel Gauge

141142

-

Grommet - Fuel Gauge Mount

424275

25

Fuel Tube

363925

26

Fuel Tube Bushing (Grommet)

101875

27

Fuel Tank Valve - 2011

100216

28

Fuel Vapor Hose

821742

29

Hex Bolt

243225

30

M1 Fuel Tank Shield

722949

31

Fender w/Decals 300B RT

693226

32

Fender w/Decals 300B LT

693227

33

Trim

822632

34

Hex Whiz Bolt

253175

35

Work Lamp Hole Plug

422079

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire 23 x 10.5 x 12

483960

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

M1 On Frame Footrest

644256

-

M1 Frame Mount Footrest

644228

43

Fuel Filler

644886

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle/Choke Mount Assembly

605831

-

Throttle Control Cable

323650

-

Throttle Lever Stop

722009

-

Throttle Stop -Heavy Duty

722736

47

Handle Grip

422150

48

Fuel Hose

821738

49

Spring Hose Clamp

280260

50

Mechanical Choke

142239

51

300 right Hydro Debris Shield

723050

52

300 left Hydro Debris Shield

723051

53

29 HP b & S AC M1 Engine

100191

54

Air Cleaner

100209

-

Air Filter Outer HD

100936

-

Air Filter Inner HD

100937

55

Muffler

101255

56

Oil Filter - Briggs

100803

57

In-Line Fuel Filter Briggs

366560

58

Hex Bolt

243445

59

90 Degree Adapter

887124

60

Jam Nut

254716

61

Aluminum Washer

773010

62

Hose Assembly Engine Oil Drain

424474

63

Metal Pipe Plug

365515

64

Speed Nut

254431

65

Muffler Shield

722837

66

Muffler Shield - Outer

722841

67

Washer

257051

68

Lock Washer

257422

69

Exhause Extension

833682

-

Muffler Clamp

101370

70

Step Bushing

257038

71

Sealed Fuel Cap Kit with Tether

606360

72

M1 Deck Belt Guide

645005

73

Fuel Tank Filler Hose

422027

74

Hose Clamp - Screw Type

280305

75

Bumper

645572

76

Plastic Push Stud .250

246975

77

329B Decal Set

604280
