Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.

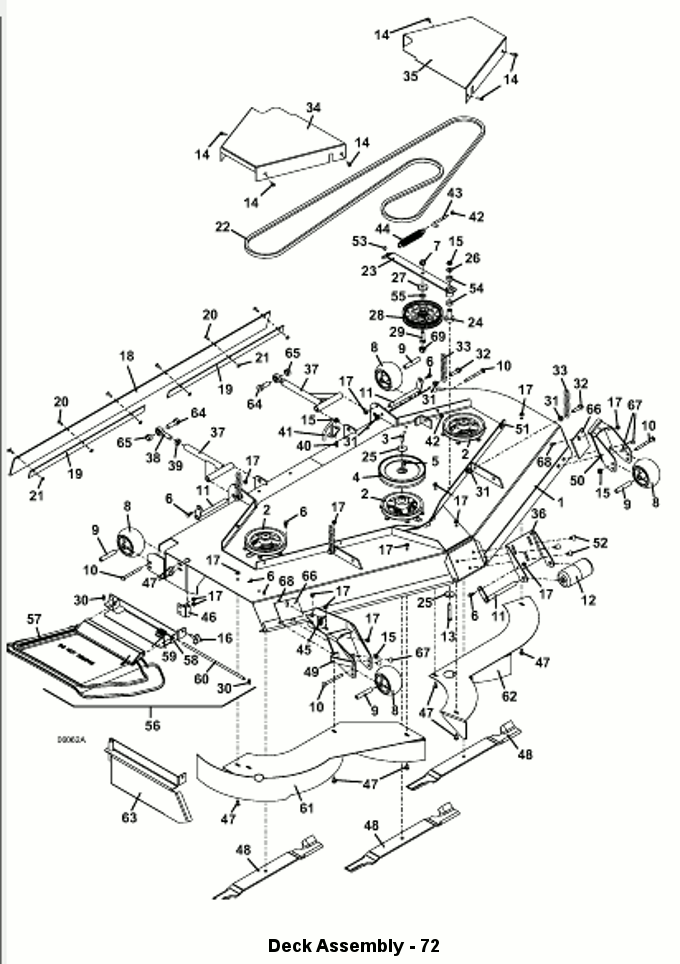

Item #
Description
Part Number
1
M172 / 07 Deck Weldment
644161
2
Sheave
414745
3
Hex Bolt
243331
4
415894
5
Square Key
281582
6
Bolt Whiz Hex Flange
253192
7
Flange Spiral Lock Nut
253067
8
Anti-Scalp Center Hub Wheel
484230
9
Bearing Tube
942137
10
Carriage Bolt
247310
11
Roller Lock Pin
644512
12
Roller Assembly - Center 2 Piece
603725
13
243365
14
Bolt Whiz Hex
253175
15
Whiz Nut
253043
16
Stud - 3 Prong HD - Deck 1.25 inch
252821
17
253035
18
M1 72 Deck Flap
424206
19
Deflector Strap
774337
20
Truss Whiz Bolt
253177
21
253025
22
Belt
382098
23
M1 72 Idler Arm
824494
24
Pedestal Bearing
121650
25
Cupped Washer
257041
26
Washer
257040
27
Retainer Washer
883804
28
Idler
393250
29
243575
30
Cotter Ring
260608
31
253058
32
GR 8 Hex Bolt
243458
33
M1 5 Links Chain
820331
34
Right Belt Shield - M1 72
723330
35
Left Belt Shield - M1 72
723331
36
Roller Mount
755071
37
Radius Arm Assembly
604675
38
Rod End
265665
39
Nut
254493
40
Flange Whiz Bolt
253203
41
M1 Deck Belt Guide
644086
42
254450
43
Idler Adjustment J Bolt
730391
44
Extension Spring
283848
45
Speeed Nut
254448
46
Vac Housing Pivot Mount
643632
47
247130
48
25" Contour
320252
-
25" Extreme Hi - Lift Blade
320254
25" Hi-Low Mulch
320255
25" Hi-Lift Notch
320253
25" Medium Lift
320250
49
right Anti-Scalp Roller Mount
644584
50
left Anti-Scalp Roller Mount
643695
51
Speed Nut
254431
52
247253
53
Nylon Bearing
422520
54
Oilite Bearing
121756
55
257062
56
Discharge Flex Shield Assembly
604317
57
Discharge Flex Shield
422042
58
Discharge Flex Shield Mount
644570
Torsion Spring
284406
59
Discharge Flex Shield Pin
780650
61
M1 72 Right Mulch Plate
644612
62
M1 72 Left Mulch Plate
644613
63
Mulch End Cap
644058
64
243810
65
Lock Nut
253970
66
Roller Spacer
775068
67
247135
68
253193
69
Idler Arm Stabilizer Cap
423670
