Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

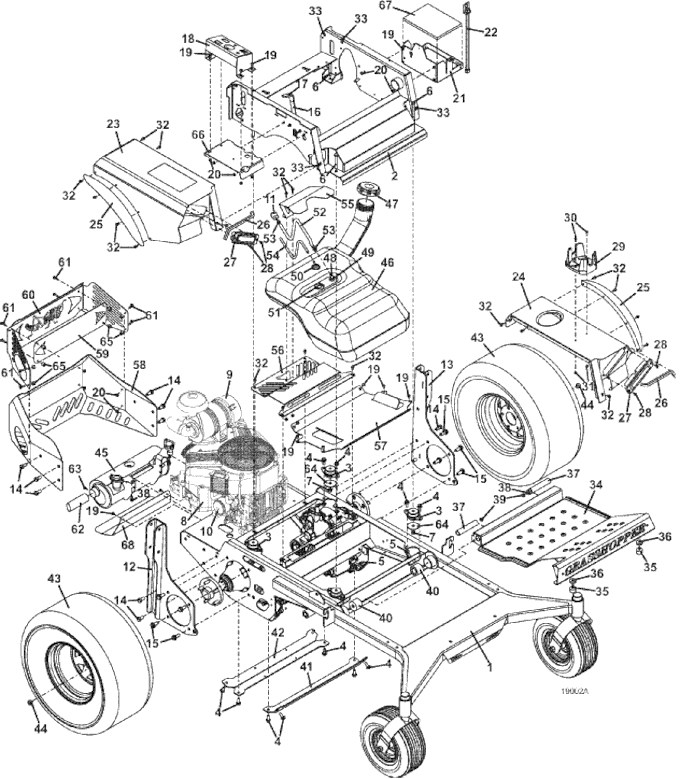

337G5 • Tractor Assembly

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

300V/61 Lower Frame

644882

-

300V/72 Lower Frame

644883

2

300V Upper Frame

645371

3

Flange Vibration Isolator

424070

4

Flange Whiz Bolt

253203

5

Whiz Nut

253043

6

Hex Bolt

243475

7

Nylon Insert Nut

253465

8

37HP Briggs & Stratton Electric Fuel Injection Vertical Engine

100084

9

90 Degree Nelson Air Cleaner

100207

-

Air Cleaner Cover Clip

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Air Hood

100203

-

HD Outer Air Filter

100936

-

HD Inner Air Filter

100937

10

Briggs Oil Filter

100803

11

Briggs In-Line Fuel Filter

366560

12

Right ROPS Mount

645148

13

Left ROPS Mount

645149

14

Hex Bolt

243560

15

Whiz Bolt

253244

16

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Heavy Duty Throttle Stop

722736

17

Handle Grip

422150

18

Console

721372

19

Truss Whiz Bolt

253176

20

Whiz Nut

253025

21

Battery Box w/Strap

644108

22

Battery Hold-Down Strap

604785

23

300V Right Fender w/Decals

693208

24

300V Left Fender w/Decals

693209

25

Tapered Flare

645002

26

Trim

822632

27

Work Lamp - LED Mini Lt Bar Fl Mount

182262

28

Hex Whiz Bolt

253164

-

Whiz Nut

253020

29

Cup Holder

150225

30

Cap Screw

259030

31

Nut

254436

32

Whiz Hex Bolt

253173

33

Speed Nut

254431

34

Footrest

644231

-

Truss Machine Screw

250164

-

Nut w/Washer

254411

-

Decal Plate

772099

35

Rubber Bumper

424052

36

Spacer

902294

37

Seat Hinge Pin

644618

38

Flange Whiz Hex Bolt

253192

39

Whiz Nut

253035

40

Footrest Isolator

424093

41

Front Skid Plate

725302

42

Rear Skid Plate

725304

43

Wheel & Turf Tire

483990

-

Turf Tire

482495

-

Wheel

483444

44

Lug Nut

254472

45

Muffler

101201

46

300V Gas Tank Assembly

605806

47

Sealed Tether Fuel Cap

100217

48

Fuel Tube

363925

49

Fuel Tube Bushing

101875

50

Fuel Tank Valve Kit

606830

51

Fuel Sender

141235

52

Fuel Hose

821769

53

Spring Hose Clamp

280260

54

Vapor Fuel Hose

821742

55

Tank Anchor

723027

56

Fan Shield

766189

57

Fuel Tank Shield

766188

58

Bumper

645564

59

Decal Plate

772098

60

Heat Shield - Bumper

724443

61

Bolt

253181

62

Exhaust Pipe

942406

63

Hex Whiz Bolt

253164

-

Whiz Nut

253020

64

Washer

257061

65

Spacer

902280

66

Console Mount

754330

67

Battery Tray Pad

427275

68

300V Heat Shield

751058

69

333G5/337G5 Decal Set

605377
