Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

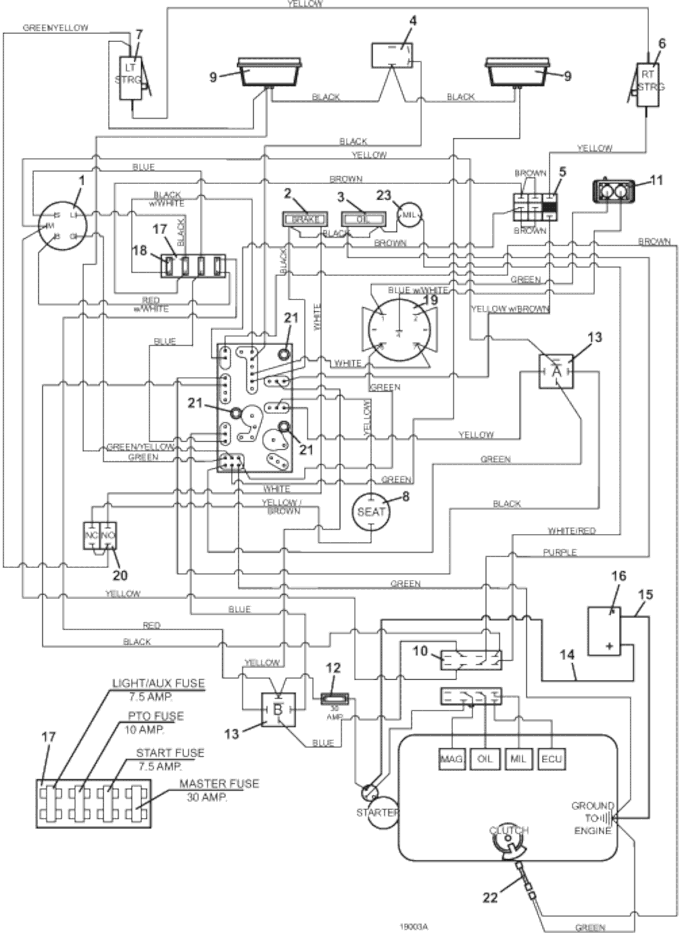

337G5 • Electrical Wiring

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch B & S/Kohler

183806

-

Key Ignition w/Cover

101101

-

Nut

254498

-

Panel Plastic

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

Right Steering Switch Mount

720160

7

Lever Switch

183860

-

Left Steering Switch Mount

720161

8

Twist-In Seat Switch

183871

9

Worklamp - LED Mini Left Bar Flood Mount

182262

10

8 Way Connector Mount

184940

11

2 Terminal Connector

184907

-

Fuel Sender

141235

12

In-Line Auto Fuse Holder

181735

-

Auto Fuse ATC - 30

181470

13

12 Volt DC Relay w/Diode

184266

14

Battery Cable 42 Inch Red

180340

-

Red Alternator Terminal Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

15

Battery Cable 39 Inch Black

180295

16

12 Volt Sidepost Wet Battery

180130

-

Hex Bolt

243309

17

Fuse Block

181720

-

Fuse ID Decal

162354

18

Auto ATC 30 Amp Fuse

181470

-

Auto ATC 7.5 Amp Fuse

181460

-

Auto ATC 10 Amp Fuse

181462

19

Console Mount Fuel Level Guage

141122

20

Brake Interlock Switch

183894

21

PC Board Support Spacer

423690

22

Pigtail Cable Assembly

388840

23

Light Indicator - MIL

182322

24

337VG5 EFI Wire Assembly

606869

25

Console Decal

161093

Return to 337G5 Index Return to Top
