Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

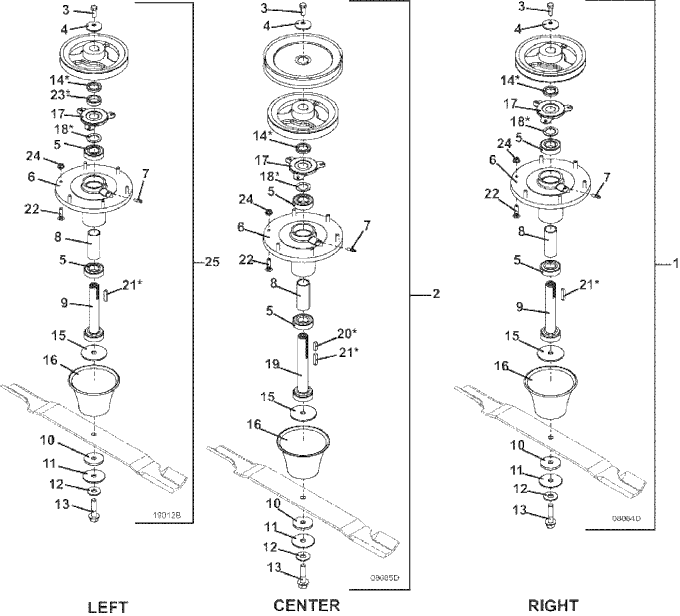

337G5 • Blade Spindle Assembly - 72 Inch

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blade Spindle Assembly - 5"-6.50

623701

2

Blade Spindle Assembly - 5"-7.42

623703

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Ball Bearing

110081

6

Housing & Bearing Sub Assembly

604410

7

Zerk Grease Fitting

280745

8

Deep Spindle Bearing Spacer

903643

9

Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Grade 8 Flange Hex Bolt

243583

14

Spacer

282607

15

Washer

257055

16

Deflector Cone

423680

17

Shield - Bearing

721167

18

Washer

257104

19

Spindle Shaft Assembly

604773

20

Square Key

281582

21

Square Key

281583

22

Round Head Bolt - Ribbed Neck

247141

23

Spacer

282615

24

Whiz Nut

253035

25

Blade Spindle Assembly - 5"-6.50

623701
