Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

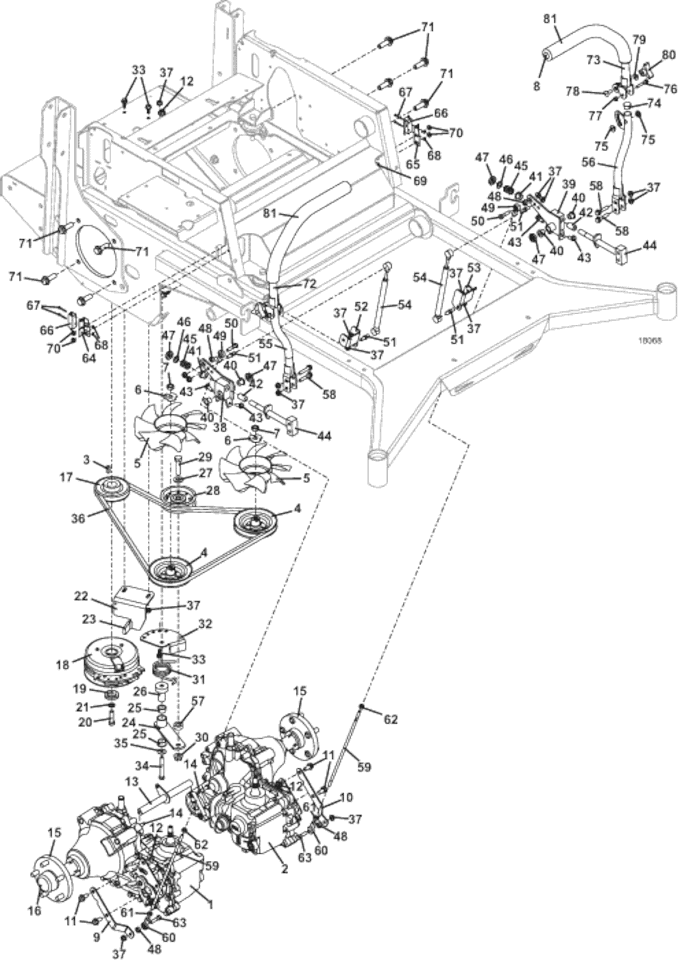

337G5 • Drive & Steering Assembly

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rt Integrated Transmission

391507

-

Filter Kit

130206

2

Lt Integrated Transmission

391506

-

Filter Kit

130206

3

Square Key

281582

4

Pulley/Fan Kit

130231

5

Fan

130238

6

Slotted Washer

130239

7

Jam Nut

130235

8

Cap - Vinyl .75 ID

422095

9

Right Control Arm

724268

10

Left Control Arm

724269

11

Whiz Bolt

253200

12

Whiz Nut

253043

13

Brake Rod

645118

14

Hex Bolt

243215

15

Hub Kit

130290

-

Axle Washer

130288

-

Castle Nut

254523

-

Woodruff Key

281860

16

Axle Cap

130292

17

Sheave

415537

18

1.125" Electric Clutch

388752

19

Step Bushing - Clutch

884314

20

Hex Bolt

243456

21

Lock Washer

257422

22

Anti-Rotation Bracket

725123

23

Clutch Bracket Cover

422088

24

Idler Arm Assembly

824478

25

Oilite Bearing

121756

26

Pedestal Bearing

121650

27

Washer

257062

28

Idler

393195

29

Hex Bolt

243580

30

Whiz Nut

253066

31

Torsion Spring

284428

32

Belt Tensioner Bracket

729733

33

Flange Whiz Hex Bolt

253192

34

Hex Bolt

243360

35

Washer

257040

36

Belt

381960

37

Whiz Nut

253035

38

Right Steering Pivot w/Stop & Bearings

604610

39

Left Steering Pivot w/Stop & Bearings

604611

40

Sleeve Bearing w/Flange

422559

41

Sleeve Bearing w/Flange

422556

42

Sleeve Bearing

422557

43

Hex Bolt

243197

44

Steering Lever Adjustment Mount

643926

45

Compression Spring

283324

46

Washer

257063

47

Nylon Insert Nut

253470

48

.25 THK Spacer

902297

49

Left Female Rod End

265651

50

Hex Bolt

243210

51

Ball Stud

265680

52

Right Damper Mount Bracket

729798

53

Left Damper Mount Bracket

729799

54

Damper Ball Socket Retain HD

285033

55

Lower Right Adj Steering Lever W/A

645748

56

Lower Left Folding Steering Lever W/A

645749

57

Spacer

902313

58

Flange Whiz Hex Bolt

253195

59

Steering Link Rod

780175

60

Right Female Rod End

265650

61

Nut

254441

62

Nut

254444

63

Hex Bolt

243210

64

Right Steering Switch Mount

720160

65

Left Steering Switch Mount

720161

66

Lever Switch

183860

67

Machine Screw

250318

68

Nut

254400

69

Truss Whiz Bolt

253176

70

Whiz Nut

253025

71

Whiz Bolt

253244

72

Adjustable Upper Right Steering Lever

645744

73

Adjustable Upper Left Steering Lever

645745

74

Nylon Plug

422063

75

Step Bushing

422508

76

Hex Bolt

243035

77

Lock Nut

253850

78

Carriage Bolt

247130

79

Flat Washer

257019

80

Thumb Screw

252858

81

Handle Grip

422179

Return to 337G5 Index Return to Top
