Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

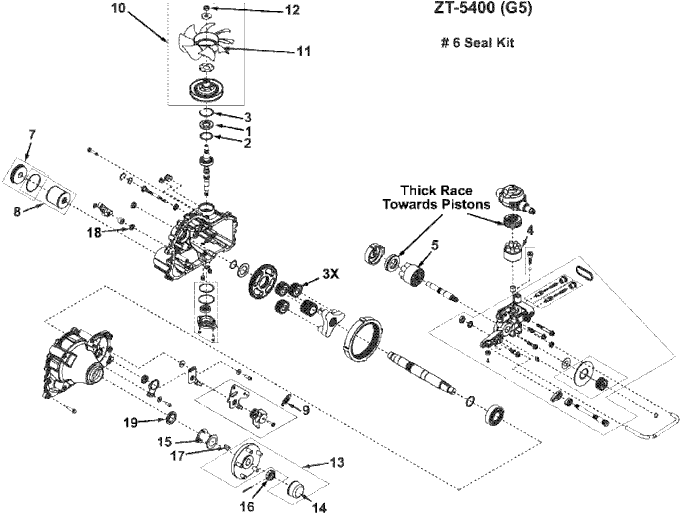

337G5 • G5 Drive Breakdown

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125372

2

Seal Spacer

130091

3

Retaining Ring

130092

4

Block Kit

130152

5

Adapter - Expansion Tank T2

130510

6

Seal Kit

130201

7

Filter Plug Kit

130204

8

Filter Kit

130206

9

Return Spring

130224

10

Pulley/Fan Kit

130231

11

Fan

130238

12

Jam Nut

130235

13

Hub Kit

130291

14

Axle Cap

130292

15

Axle Sleeve

130293

16

Castle Nut

254523

17

Woodruff Key

281860

18

Brake Seal

125172

19

Axle Seal

125530

Return to 337G5 Index Return to Top
