Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

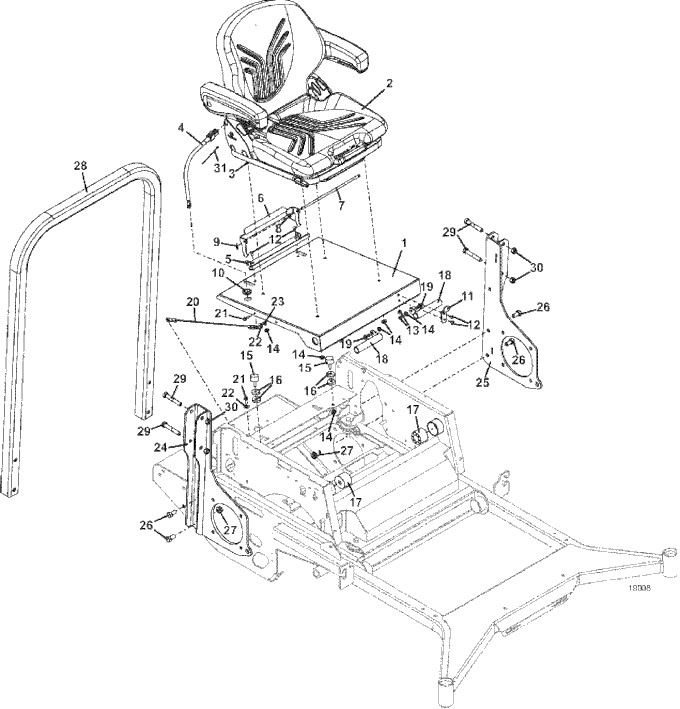

337G5 • Grammer Seat & ROPS Assembly

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

300V Seat Mount

644444

2

Grammer Seat Assembly

321572

3

Hex Bolt

243185

4

Grammer SU Seat Wiring Adapter

605970

5

300/400 Seat Suspension Stop

754235

6

Seat Suspension Latch

754292

7

Pivot Pin Seat Latch

730230

8

Torsion Spring

284408

9

Cotter Ring

260606

10

Grommet

424235

11

Seat Suspension Slide Stop

732313

12

Truss Whiz Bolt

253176

13

Whiz Nut

253025

14

Whiz Nut

253035

15

Bumper w/Stud

424056

16

Spacer

902294

17

Seat Isolator

424095

18

Seat Hinge Pin

644618

19

Flange Whiz Hex Bolt

253192

20

Cable Assembly

603215

21

Hex Whiz Bolt

253175

22

Washer

257020

23

Nylon Insert Nut

253440

24

Right ROPS Mount

645148

25

Left ROPS Mount

645149

26

Hex Bolt

243560

27

Whiz Nut

253066

28

300V ROPS Tube

324118

29

Hex Bolt

243600

30

Lock Nut

253930

31

Tie

423147
