Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

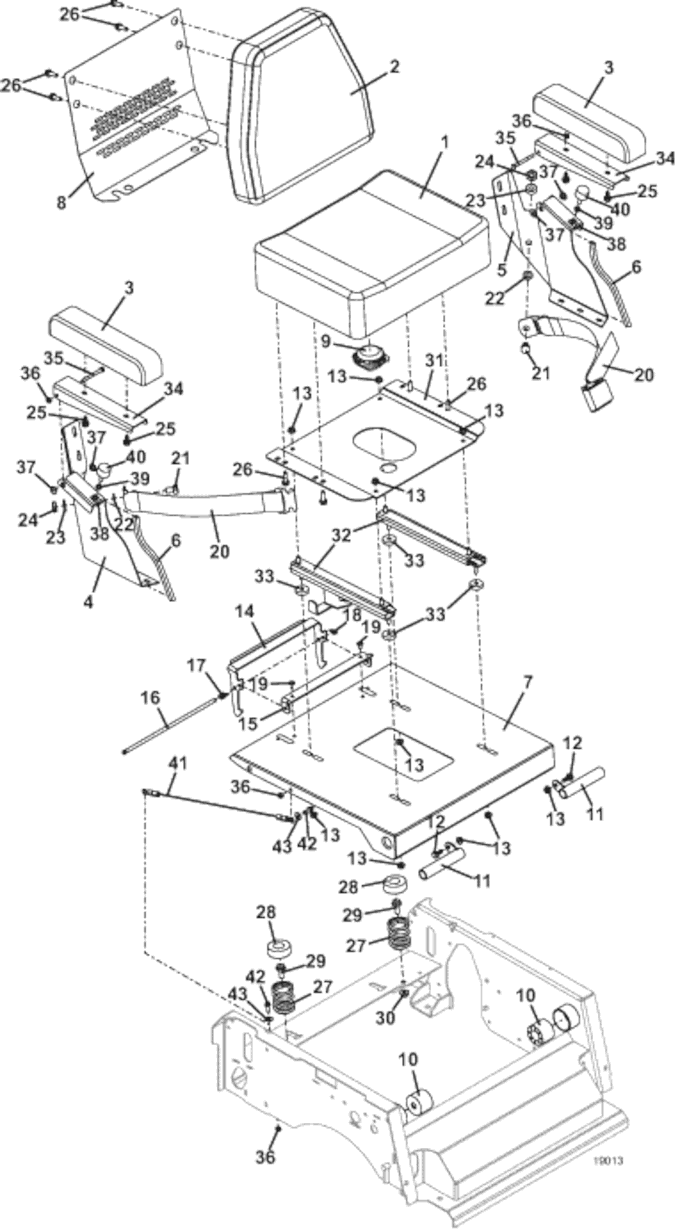

337G5 • Lumbar Seat Assembly (Optional)

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seat Cushion - Combo

321529

2

Back Cushion - Combo w/Logo

321530

3

Cordura Covered Armrest

321523

4

Right Folding Armrest - Seat Side

723435

5

Left Folding Armrest - Seat Side

723436

6

Seat Edge Trim

822630

7

Dual Latch Seat Mount

643936

8

Seat Reinforcement - Raised Backrest

722884

-

Red/White Medium Grasshopper Emblem Decal

163295

9

Twist-In Seat Switch

183871

10

Seat Isolator

424095

11

Seat Hinge Pin

644618

12

Hex Flange Whiz Bolt

253192

13

Whiz Nut

253035

14

Seat Dual Latch

754240

15

Dual Latch Mount Bracket

754226

16

Seat Latch Pivot Pin

730230

17

Torsion Spring

284408

18

Cotter Ring

260606

19

Truss Whiz Bolt

253176

20

Non-Retractable Seat Belt

324200

21

Hex Bolt

243551

22

Washer

257063

23

Washer

257062

24

Nylon Insert Nut

253470

25

Flange Whiz Hex Bolt

253191

26

Flange Whiz Hex Bolt

253193

27

Compression Spring

283516

28

Seat Spring Cap

422127

29

Flange Whiz Bolt

253203

30

Whiz Nut

253043

31

Plate - Suspension Seat

754231

32

Seat Track Set

303610

33

Spacer

902294

34

Folding Arm Rest

754288

35

Hex Bolt

243050

36

Nylon Insert Nut

253440

37

Step Bushing

422508

38

Speed Nut

830325

39

Bumper Nut Cap

833542

40

Bumper w/Stud

424056

41

Cable Assembly

603215

42

Hex Whiz Bolt

253175

43

Washer

257020
