Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

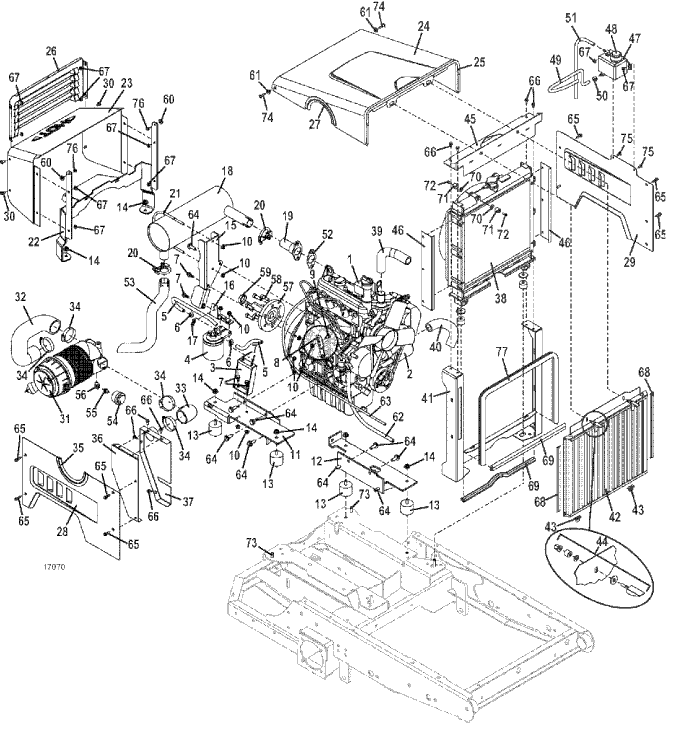

400D 1.3L • Engine Assembly

2018

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100184

2

Kubota Oil Filter

100805

3

900 Fuel Filter Mount

644220

4

Kubota Fuel Filter

101004

5

Fuel Line Hose

821716

6

Spring Hose Clamp

280261

7

Hex Flange Whiz Bolt

253192

8

928 Linkage Extension

723063

9

Hex Bolt

243185

10

Whiz Nut

253035

11

400/900 right Engine Mount

643028

12

400/900 left Engine Mount

643029

13

Vibration Isolator

424078

14

Whiz Nut

253043

15

Muffler Mount

729348

16

Throttle Cable Mount

724573

17

Conduit Clip

180635

18

Kubota Straight Muffler

101234

19

Exhaust Flange

644237

20

Exhaust Clamp

101356

21

U-Bolt

321250

22

428D Hood Support

644848

23

Rear Hood Muffler Cover

722894

24

Engine Hood

644491

25

Front Hood Trim

822639

26

Rear Hood Grille 400/900

645271

27

11.0 Air Cleaner Seal Trim

822515

28

Right Hood Side 400/900

722892

29

Left Hood Side 400/900

762522

30

Bolt

253180

31

Nelson 90 degree Air Cleaner

100207

-

Dust Ejector

100201

-

End Cap Clip

100219

-

Air Cleaner End Cap

100220

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

32

Air Intake Hose

424521

33

Breather Inlet Hose

424523

34

Screw Type Hose Clamp

280305

35

Air Cleaner Seal Trim

822510

36

Air Intake Box Mount

644069

37

Air Intake Box

644062

38

Kubota Radiator

101616

39

Aluminum Radiator Upper Hose

101060

40

Aluminum Radiator Lower Hose

101061

41

Lower Radiator Mount

644653

42

900D 1.3L Grille Assembly

604384

43

Rear Belt Isolator Shield

422090

44

Swell Latch Assembly

604805

45

Upper Radiator Mount

644652

46

Side Shield

721197

47

Expansion Tank Assembly

604340

48

Reservoir Cap with Gasket

421990

-

O-Ring

425550

49

Hose

821749

50

Spring Hose Clamp

280260

51

Clear Vent Hose

821748

52

Exhaust Flange Gasket

15313-12370

53

400 Series Exhaust Pipe

101385

54

Filter Minder Gauge with Mount

141012

55

O-Ring Filter Fitting

363815

56

Street Ell Fitting

363828

57

Clutch Stub Shaft

824641

58

M10 Socket HD Screw

270085

59

Spacer

830420

60

Hood Hinge Spacer

901324

61

Step Bushing

422508

62

Fuel Line Hose

821718

63

Fuel Line Return Hose

821744

64

Hex Bolt

271121

65

Hex Whiz Bolt

253175

66

Hex Whiz Bolt

253173

67

Whiz Nut

253025

68

Radiator Trim

822641

69

400/900 Lower Radiator Seal

822506

70

Washer

257020

71

Rubber Bumper

424033

72

M6 Socket Head Screw

270065

73

Flange Whiz Bolt

253203

74

Bolt

253181

75

Truss Whiz Bolt

253176

76

Nylon Insert Nut

253440

77

Radiator Trim Seal

822522
