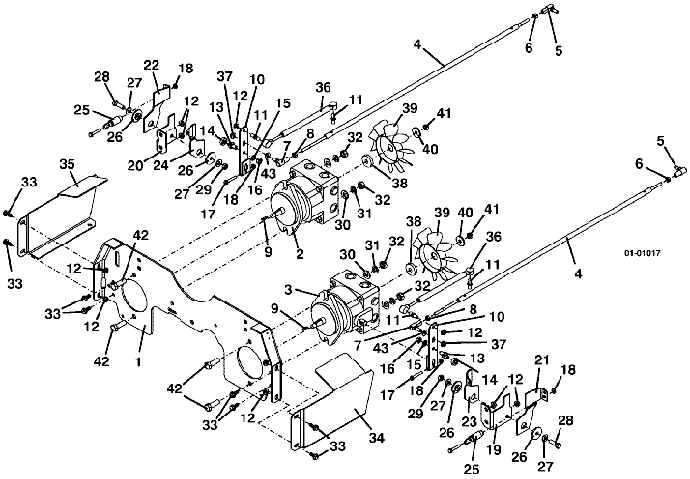

428D • Drive Assembly (continued)
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Pump Plate - 325 / 400 |
644633 |
2 |
Hydro Pump - left |
391452 |
3 |
Hydro Pump - right |
391453 |
4 |
Steering Linkage Rod - 400S |
604526 |
5 |
Ball Joint |
265615 |
6 |
Nut .312-24 |
254441 |
7 |
Ball Joint - Lefthand Thread |
265616 |
8 |
Nut .312-24 |
254444 |
9 |
Key .125 x .187 x .750 |
281562 |
10 |
Control Arm |
725338 |
11 |
Ball Stud |
265680 |
12 |
Whiz Nut |
253035 |
13 |
Neutral Adjust Roller Mount |
887110 |
14 |
Double Seal Ball Bearing .315 x .866 |
120025 |
15 |
Washer |
257410 |
16 |
Nut .375-16 |
254450 |
17 |
Hex Whiz Bolt .25-20 x 1.5 |
253182 |
18 |
Whiz Nut .250-20 |
253025 |
19 |
Neutral Return Mount - right |
729225 |
20 |
Neutral Return Mount - left |
729229 |
21 |
Neutral Return Front Arm - right |
729136 |
22 |
Neutral Return Front Arm - left |
729137 |
23 |
Neutral Return Arm - right |
729138 |
24 |
Neutral Return Arm - left |
729139 |
25 |
Extension Spring |
283823 |
26 |
Neutral Return Pivot Bearing |
822304 |
27 |
Washer |
257030 |
28 |
Hex Bolt .375-16 x 1.25 |
243335 |
29 |
Lock Nut .375-16 |
253890 |
30 |
Anti Rotation Bracket |
755046 |
31 |
Washer |
257062 |
32 |
Nut .500-13 |
254470 |
33 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
34 |
400 right Pump Plate Gusset |
729308 |
35 |
400 left Pump Plate Gusset |
729309 |
36 |
Damper |
285031 |
37 |
Whiz Nut .312-24 |
253038 |
38 |
Fan Mount Hub 10A |
885123 |
39 |
7" Nylon Fan |
320857 |
40 |
Washer |
774020 |
41 |
Nut .375-24 |
254452 |
42 |
Hex Bolt .500-13 x 1.500 |
243570 |
43 |
Washer |
257020 |
